Toshiba Carrier VRF

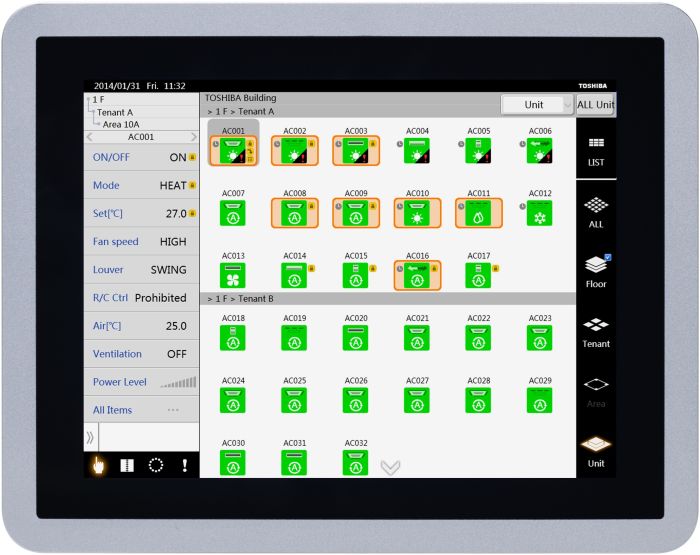

The Touch Screen Central Controller is a line voltage controller mounted on the wall with a touch screen LCD display panel. This controller enables the customer to control and monitor the operation of the VRF System.
Compatible Indoor Units
MMU2 – 4-Way Cassette
MMUM – Compact 4-Way Cassette
MMC1 – Underceiling
MMK3 – High Wall
MMDB – Concealed Duct
MMD4 – High Static Duct
MMDP – Slim Duct
40TCQ – Vertical AHU
- Grouping based on floor, unit, area, tenant and level
- Operating Mode, Turning ON/OFF
- Enable or disable local remote control
- Master scheduler: weekly, 5 special days, monthly
- Display alarm + provide history for alarms
- Web browser monitoring and control (for intranet PC)
- Up to 2 concurrent users can be connected
- Additional digital I/O device available
- Maximum of 512 indoor units per Touch Screen Controller
- Selectable display language - English/French/Spanish
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 4 | Exterior Dimensions (D) (inches) | 1.250000 | Exterior Dimensions (W) (inches) | 10.880000 | Exterior Dimensions (H) (inches) | 7.380000 | Shipping Weight (lbs) | 5.000000 |
