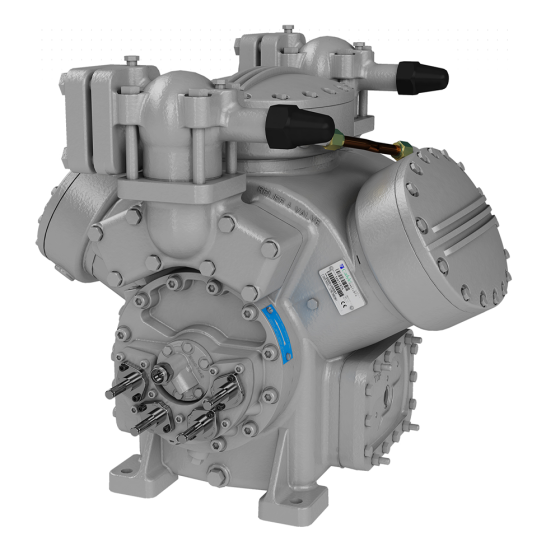

Open-Drive Reciprocating Compressor, 184.7CFM

Item
5H80A219
  • California Prop 65

FEATURES & BENEFITS

• Compressor Package: Remanufactured
• Maximum Displacement (CFM): 184.7
• Eight Cylinders (Four Heads)
• Carlyle has approved the following UL listed (HFC) refrigerants for use in 5F and 5H compressors: R-134a, R-404A, R-407A, R-407C, R-407F, R-448A, R-449A, R-450A, R-452A, R-507, and R-513A

Carlyle has historically approved the following UL listed (CFC) refrigerants for use in 5F and 5H compressors: R-22, R-500, and R-502 for use in 5F and 5H.
• Oil Charge: 41 Pints (19.4 Liters) (Note: Normal oil level in sight glass should rest at the center line.)
Castrol SW68 is approved for use in Carrier chiller applications as well as Carrier and Carlyle semi-hermetic compressors for air conditioning and medium temperature applications.
Castrol SW68 cannot be used in any new low temperature refrigeration applications using Carlyle OEM semi hermetic compressors. Castrol E68 is approved for use in Carlyle OEM compressors for low, medium, and high temperature ranges.

The following POLYOL-ESTER (POE) are approved oils for HFCs (Note: All HFC/POE applications require a crankcase heater).
POE68 (Do NOT use in low temperature applications.)
Totaline®: P903-1025 (1qt), P903-1001 (1gal), P903-1005 (5gal)

POE68e
Totaline®: P903-1725 (1qt), P903-1701 (1gal), P903-1705 (5gal)
Castrol E68

The following MINERAL/ALKYLBENZINE are approved oils for CFCs:
Totaline®: P903-2025 (1qt), P903-2001 (1gal), P903-2005 (5gal)

Specification
Max Displacement (CFM) 184.7
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 1115
Exterior Dimensions (D) (inches) 43.875000
Exterior Dimensions (W) (inches) 24.500000
Exterior Dimensions (H) (inches) 32.000000
Shipping Weight (lbs) 1215.000000
Warranty
Country of Origin United States
