YellowJacket® TITANMAX™ 4-Valve Digital Manifold Backpack Kit with PLUS II™ Hoses (A2L)
Item
40880
FEATURES
The YELLOW JACKET® TITANMAX™ Digital Manifold provides the easiest path to system measurements. This 4-valve manifold provides fast and accurate measurements for refrigeration and A/C systems. The high resolution backlit touchscreen display erases the need for multi-function buttons and provides clear graphical and digital measurements. It also features internal data logging. Connect via Bluetooth® to the YJACK VIEW® App or measure Quick® App for further analysis.
• Measures high and low side pressures and temperatures• Displays vapor and liquid saturation temperatures
• Calculates system superheat and subcooling
• On-board data logging; export to your computer with USB or to your phone via YJACK VIEW® App
• Compatible with measure Quick® App
• Pressure hold mode displays rate of change for vacuum and positive pressure measurements
• Wirelessly measure and display relative humidity, dry bulb, wet bulb and dew point temperature alongside system pressure and temperature measurements with YJACK DEW®
• High resolution, full color, backlit, 5″ touchscreen display
– Ultimate user interface – information on major screens
– Adjustable timing for auto shut-off
– Touchscreen never has to be calibrated
– Digital and graphical pressure/temperature measurements
– Choose from relevant refrigerant profiles stored including A2L – may designate 3 favorites
• Robust housing with ergonomic grip
– 4-way TITAN® valve block
– Integrated magnets for mounting on equipment cabinet may also be used to store TITAN® Temperature Clamps
– Pivoting hook
– Convenient connections for USB port, temperature clamps, and vacuum sensor
• External vacuum sensor with high and low alarms
– Vacuum measurements, set targets and leak testing
• Larger temperature clamps (2) for up to 1-5/8″ pipes
• Bluetooth® 5.2; range up to 1,000 feet
• Maximum working pressure 740 psia (51.0 bar)
• Multiple languages: French, Spanish, German and English
• Rechargeable battery with life indicator
– Continuous use no backlight: 80 hours
– Continuous use with full backlight: 4.5 hours
• US and INTL units (bar, psia, psig, kPa, MPa, kg/cm2)
• IP52 certified
• Two-year warranty

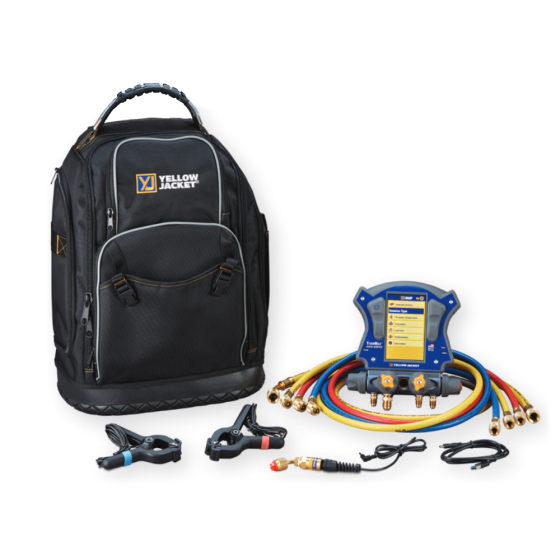

INCLUDES
• TITANMAX™ Digital Manifold• TITAN® Temperature Clamps (2) (P/N 40846)
• Vacuum Sensor (P/N 67044)
• Set of four PLUS II™ Hoses
• (3) 60” RYB, 1/4” (P/N 21985)
• (1) 60”, 3/8” Yellow Vacuum Hose 3/8” Straight x 3/8” 45° (P/N 18160)
• USB-C Charge & Data Cable (P/N 40847)
• Backpack - multi-pocket (P/N 40845)
Specification | |
---|---|
A2L Compatible | Yes |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 20 | Exterior Dimensions (D) (inches) | 16.000000 | Exterior Dimensions (W) (inches) | 16.000000 | Exterior Dimensions (H) (inches) | 16.000000 | Shipping Weight (lbs) | 20.000000 |
