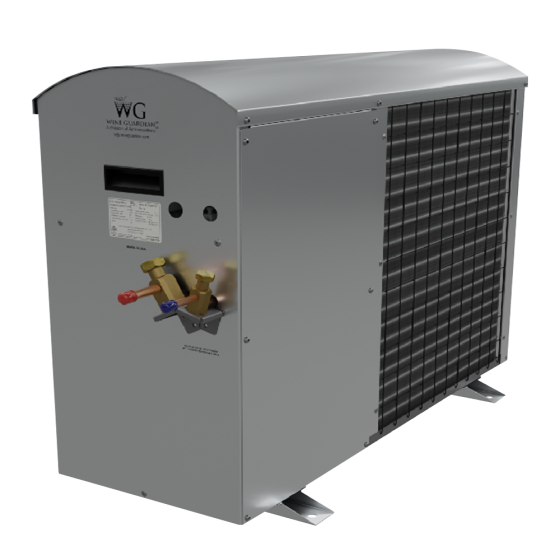

Wine Guardian® SS018 Ductless Split Wine Cellar Cooling Condenser, 2,800BTUH, 208/230Vac, Single Phase, 60Hz (Extreme Climate Protection)
Item
99H0293-13
FEATURES
The SS018 Ductless Split wine cellar cooling unit is a cutting-edge system versatile enough for either surface-mounting or through-the-wall mounting. It is ideal for small wine cellars which have no room for mechanical equipment or are unable to accommodate ductwork. Always use the wine cellar cooling calculator to determine if the SS018 will be suitable for your wine storage application.
EXTREME CLIMATE PROTECTION BUNDLE
Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.
• Commercial-grade, corrosion-resistant construction for long-term durability
• Fan-coil can be mounted through-the-wall or surface mount— exclusive to this unit
• Condensing unit operating capacities from 20°F/-7°C to 115°F/46°C with standard low ambient
• Condensing unit standard with outdoor enclosure
• Small footprint— fan coil fits well within racking or above a doorway
• Quiet and efficient operation
• Adjustable louvers
SPECIFICATIONS
Performance• Net Cooling Capacity Total/Sensible
@10°F (minus 12°C) condenser inlet air: 2870/2300 BTUH
@40°F (4°C) condenser inlet air: 2580/2050 BTUH
@60°F (15°C) condenser inlet air: 2860/2230 BTUH
@70°F (21°C) condenser inlet air: 2870/2260 BTUH
@80°F (27°C) condenser inlet air: 2800/2220 BTUH
@100°F (32°C) condenser inlet air: 2600/2100 BTUH
@115°F (46°C) condenser inlet air: 2300/1800 BTUH
@122°F (50°C) condenser inlet air: 2000/2000 BTUH
Controls
• Type: Room mounted non-programmable combination thermostat humidistat
• Temperature Accuracy/RH% Accuracy: +/- 1 Deg F +/- 10% RH
Condensing Unit
• Nominal Compressor: ¼ HP
• Fan Motor Size: 75 Watts
• Rated Air Flow (free blow): 350 CFM
• Weight: 75 lbs
Enclosure
• Construction: Aluminum
• Finish: Anodized
• Width: 12 inches
• Length: 34 inches
• Height: 26 inches
Electrical Requirements
• Power: 208/230 Volts/1 Phase/60Hz
• MCA: 3.3 Amps
• MOP: 6.0 Amps
• Agency Approval(s): ETLc
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 75 | Exterior Dimensions (D) (inches) | 34.000000 | Exterior Dimensions (W) (inches) | 12.300000 | Exterior Dimensions (H) (inches) | 26.000000 | Shipping Weight (lbs) | 75.000000 |
| Specification | |
|---|---|
| Maximum Capacity (BTU/H) | 2,800 | Minimum Capacity (BTU/H) | 400 | Model | SS018 Condenser | Defrost Sensor | No | High Ambient Protection | No | Low Ambient Protection | Yes | Serving Temperature | No | Water Cooled | No |
