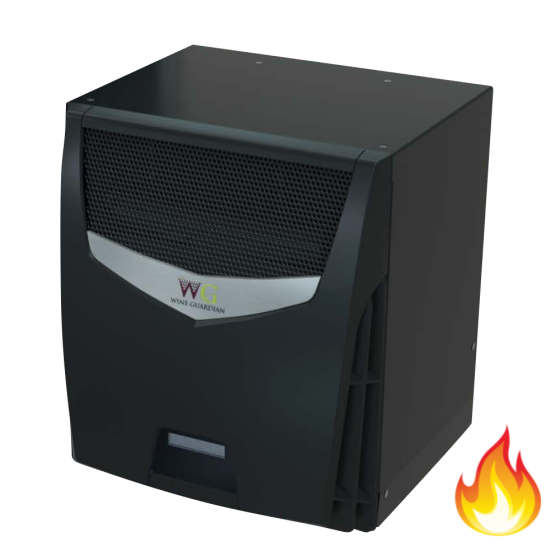

Wine Guardian® SS018 Ductless Split Wine Cellar Cooling Evaporator with Heater, 2,800BTUH, 115Vac, Single Phase, 60Hz

Item
99H0292-12
  • California Prop 65

FEATURES

The SS018 Ductless Split wine cellar cooling unit is a cutting-edge system versatile enough for either surface-mounting or through-the-wall mounting. It is ideal for small wine cellars which have no room for mechanical equipment or are unable to accommodate ductwork. Always use the wine cellar cooling calculator to determine if the SS018 will be suitable for your wine storage application.

• Commercial-grade, corrosion-resistant construction for long-term durability
• Fan-coil can be mounted through-the-wall or surface mount— exclusive to this unit
• Condensing unit operating capacities from 20°F/-7°C to 115°F/46°C with standard low ambient
• Condensing unit standard with outdoor enclosure
• Small footprint— fan coil fits well within racking or above a doorway
• Quiet and efficient operation
• Adjustable louvers

SPECIFICATIONS

Performance
• Net Cooling Capacity Total/Sensible
@10°F (minus 12°C) condenser inlet air: 2870/2300 BTUH
@40°F (4°C) condenser inlet air: 2580/2050 BTUH
@60°F (15°C) condenser inlet air: 2860/2230 BTUH
@70°F (21°C) condenser inlet air: 2870/2260 BTUH
@80°F (27°C) condenser inlet air: 2800/2220 BTUH
@100°F (32°C) condenser inlet air: 2600/2100 BTUH
@115°F (46°C) condenser inlet air: 2300/1800 BTUH
@122°F (50°C) condenser inlet air: 2000/2000 BTUH

Controls
• Type: Room mounted non-programmable combination thermostat humidistat
• Temperature Accuracy/RH% Accuracy: +/- 1 Deg F +/- 10% RH

Fan-coil Section
• Fan Motor Size: 75 Rated Watts
• Rated Air Flow (free blow): 150 CFM

Heater
• Type: Electric
• Capacity: 1,000 Watts

Electrical Requirements
• Power: 115 Volts/1 phase/60Hz
• Current Draw - Cooling mode: 0.7 Amps

Cabinet
• Fan coil construction: Aluminum
• Finish: Black - textured epoxy powder coat
• Weight (lbs.): 25
• Dimensions (inches):
Width: 14.25
Depth: 13.25
• Height: 15.87

• Condensate Drain: 0.5 inches

• Agency Approval(s): ETLc
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 25
Exterior Dimensions (D) (inches) 13.310000
Exterior Dimensions (W) (inches) 14.250000
Exterior Dimensions (H) (inches) 15.870000
Shipping Weight (lbs) 25.000000
Specification
Maximum Capacity (BTU/H) 2,800
Minimum Capacity (BTU/H) 400
Model SS018 Evaporator
Defrost Sensor No
High Ambient Protection No
Low Ambient Protection No
Serving Temperature No
Water Cooled No
