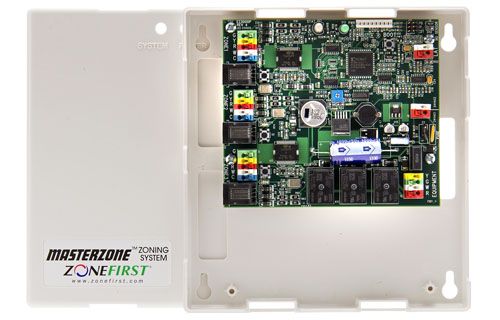

ZoneFirst Mini-MasterZone™ 2 or 3-Zone Control Panel for Plug-In Dampers (1H/1C Conventional)

FEATURES

The Mini MasterZone™ Zoning Panel is a 2 and 3 zone, single stage heating and cooling control panel. This electronic panel provides the simplest zoning functions and works with all standard heating and cooling thermostats. The MMP3 controls the New Plug-in Zone Motors that use modular cords, supplied with each damper and the DC motors. This panel is used exclusively with the ZDSP, ZDBP, RDP and RRP dampers.

The MM panels are designed to use a minimum of wires to make zoning simple and affordable. Each zone uses a standard 4 wire (Y-G-R-W) thermostat. The panels also feature a separate C – Common terminal for 24 Volt powered thermostats. All terminal blocks are color coded for each wire and have push–in connections making wiring even simpler and no need for a small screwdriver, as with all other zoning panels. The state-of-the-art surface mount technology for all electronic components makes for a highly reliable control panel.
