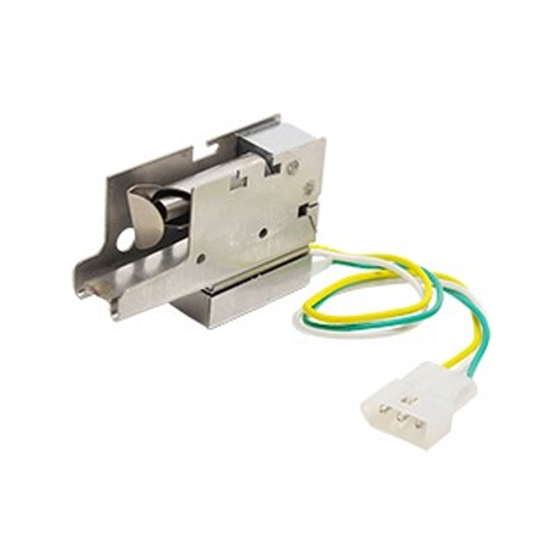

Robertshaw® 3-Wire Pilot with Safety Switch
Item
1830-620
PRODUCT DETAILS
The Robertshaw® 1830 Series Pilot Burner Safety Switch is an ignition control with an embedded safety switch. The control's sensing technology automatically detects when a flame is not present and shuts off gas flow to help prevent an unsafe condition. This hard-to-find part is a key replacement component for over 1,700 Carrier, Payne, and Bryant and Daynight (BPD) furnace models.
FEATURES & BENEFITS
• Differential expansion pilot with a 3-lead SPDT switch for use with a hot surface igniter or spark ignition.• Yellow, white and green wires with Molex plug adapter.
• Pilot includes flame sensing, heat activated relay at base of pilot module.
• Switch: SPDT
• Orifice Size: .017
• Inlet Pressure: 7.0" W.C.
• Input Rating: 950 BTU/Hr
• Electrical Rating: 30V AC, 60 Hz, 1 Amp
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 2 | Exterior Dimensions (D) (inches) | 8.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 6.000000 | Shipping Weight (lbs) | 2.000000 |
