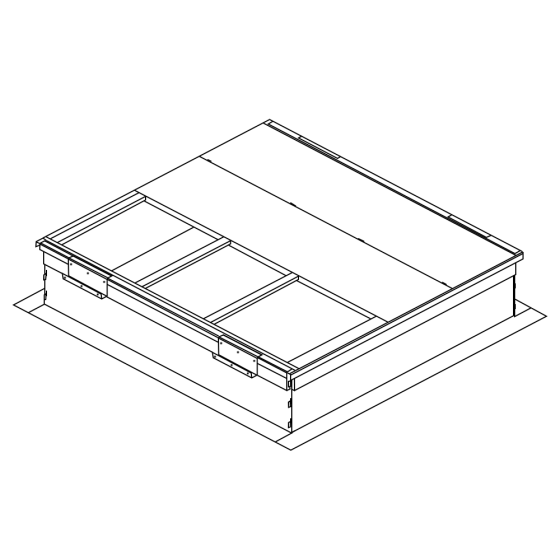

MicroMetl Roof Curb, 11" Tall, Knockdown, No Pitch, Insulated Deck Pan, Structurally Calculated
Item
CRBK-SPPLGHA-111H
FEATURES
Knockdown Structurally Calculated Curb - 11 Inches Tall Non Insulated Full Perimeter Knockdown Structurally Calculated Curb, California State Standard, High Seismic Criteria, Includes Hold-Down Brackets. "Structurally" Stamped By A Professional Engineer, Without Pitch, Insulated Deck Pan If Applicable, Includes Wood Nailer & Hold Down Brackets. Meets Seismic Requirements for 2022 CBC & 2021 IBC. Wind Design Criteria: 60 Foot Tall Building Maximum, Exposure C, 155 MPH - 3 Second Gust Speed, Risk Category III & IV.
SPECIFICATIONS
• Weight: 65lbs/29.48kg• Assembled Length O.D.: 46.04
• Assembled Width O.D.: 42.17
• Composition: Galvanized Sheet Metal
• Insulated: Non Insulated
• Perimeter: Full Perimeter
• Support Gauge: 18
• Hold Down Gauge: 14
• Deck pan: Included
• Deck pan Description: Galvanized Metal, Using 1 Inch Insulation, R Value 4.2
• Gasket: 9430-0100, 9430-0200, 9430-2800
• Gasket Description: 0.25 X 1.5 Inch Multipurpose Medium Density Foam Gasket. 0.75 X 1.0 Inch Two Pound Polyester Urethane Sealing Gasket.
| Specification | |
|---|---|
| Adjustable Pitch | No | Curb Height | 11" | Structurally Calculated | Yes | Structure | Knockdown |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 65 | Exterior Dimensions (D) (inches) | 51.000000 | Exterior Dimensions (W) (inches) | 47.000000 | Exterior Dimensions (H) (inches) | 11.000000 | Shipping Weight (lbs) | 65.000000 |
