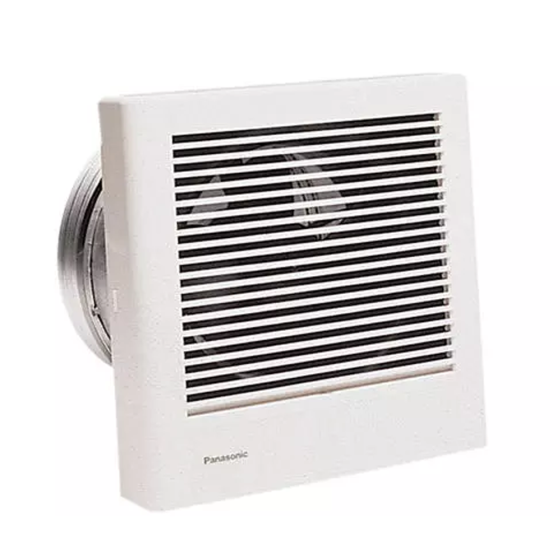

The Panasonic WhisperWall® FV-08WQ1 Thru-the-Wall Ventilation Fan is UL listed for through-the-wall application. Ideal for when you need to provide ventilation in rooms where a ceiling mounted fan is not possible. WhisperWall installs on an exterior wall, includes a 10” galvanized sleeve and steel exterior hood. Can be used to comply with the latest codes and standards.
FEATURES & BENEFITS
• UL listed for through-the-wall application • Includes 10" galvanized sleeve and steel exterior hood • UL listed for tub/shower enclosure when GFCI protected • Can be used to comply with ASHRAE 62.2, LEED, IAP, California Title 24 and WA Ventilation Code • CFM: 70 @ 0.03" SP • Other Approved Codes and Standards: ASHRAE 62.2, LEED, California Title 24, Washington VIAQ • Current (Amps): 0.20A • Duct Diameter: 8" Round • Energy Efficiency (CFM/Watt): 4.3 CFM/W • ENERGY STAR® Certified: Yes • Grille Size (in sq.): 10-1/4" • Installation: Wall • Motor Type (AC/DC): AC • Mounting Opening (in sq.): 9-7/16" • Mounting Options: Wall Mount (UL). Tub/Shower (UL) • Noise (Sones): 70 @ 0.03" SP = 1.1 • Power Consumption (Watts): 18.0W • Power Rating (Vac/Hz): 120/60
Motor/Blower • Four–pole totally enclosed condenser motor rated for continuous run. • Power Rating shall be 120 volts and 60 Hz. • Fan shall be UL and cUL listed for tub/shower enclosure when used with a GFCI branch circuit wiring. • Motor equipped with thermal–cutoff fuse.
Housing • Rust proof paint, galvanized steel body. • Outside hood with built in backdraft damper and bird screen. • Expandable sleeve up to 10".
Grille • Attractive design using ABS material. • Attaches directly to housing.
Warranty • ALL Parts: For period of 3 years from the date of the original purchase.
