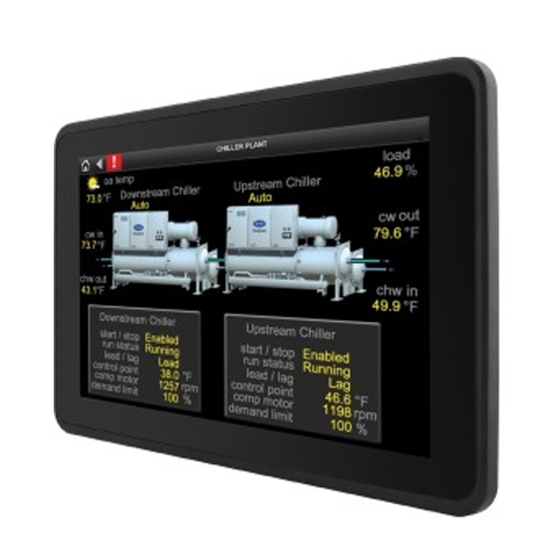

TruVu Equipment Display; 15" Touch Display

OVERVIEW

Carrier’s Equipment Touch EQT3 displays are an integrated component of the i-Vu building automation system. They feature illuminated color pixel touchscreens in three different sizes and connect to a single i-Vu controller. Designed for panel or wall mounting, they provide building occupants, facility managers, and technicians a powerful user interface for managing HVAC equipment in a building.

• FEATURES & BENEFITS

• Available in three sizes (7”, 10” & 15")

• Rugged, industrial grade front display - suitable for mechanical rooms or board room mounting

• Rnet connection or Service Port (either Ethernet or USB) connection

• Fully customizable touchscreen for navigation and control with ViewBuilder

• Default system screens such as scheduling and trends

• Supports international languages

• Support for graphics and animations

• Screen captures can be saved to a USB flash drive

• Built-in PDF viewer

SPECIFICATIONS

Power

• 50-60 Hz, Class 2, 24 VDC (±15%), 1A, 375A (EQT3-7), 417A (EQT3-10, EQT3-15)

Communication Ports

• Comm Input Port: EIA-485 port for connection to the Rnet sensor network (115kbps)

• USB port: for upgrades, file copying, screen captures, and connection to service port on TruVu controllers

• Micro USB On The Go (OTG) port: for factory programming

• LAN Port: RJ-45 Ethernet connection to Service Port on TruVu controllers

System

• OS: Android 11.0

• Processor: MT8365 Quad-core Cortex-A53 up to 2.0GHz

• System Memory: : (7” and 10” models) 3 GB LPDDR4 RAM, (15” model) 4 GB LPDDR4 RAM

• Storage: 32 GB onboard eMMC Flash storage

Environmental

• -4°F to 122°F (-20°C to 50°C), 10–90% RH, non-condensing

• -13°F to 158°F (-25°C to 70°C)

Display

• Touch: Projected Capacitive Multi-Touch (P-CAP)

• EQT3-15

• Display: 15.6” TFT (Widescreen)

• Resolution: 1366 x 768 pixels (252 ppi)

• Brightness: 320 cd/m (typ.)

• Contrast Ratio: 500:1 (typ.)

• Viewing Angle: -85~85(H); -85~80(V)

• Max Colors: 16.7M (8-bit)

Certifications

• CE (Class B), FCC (Class B), CAN/CSA C22.2 No. 62368-1-14, ANSI/UL (62368-1, 2nd Ed), Vibration tested to EN60068-2-6, IP65 rated (front) IP20 rated (rear)

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	5
Exterior Dimensions (D) (inches)	14.000000
Exterior Dimensions (W) (inches)	10.000000
Exterior Dimensions (H) (inches)	5.000000
Shipping Weight (lbs)	5.000000
