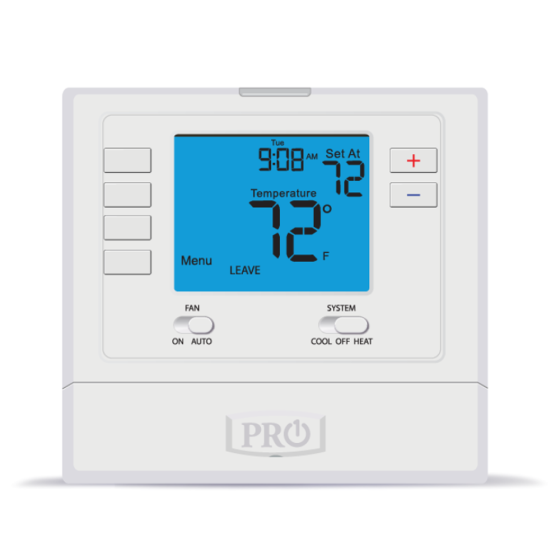

Pro1 T715 7/5+1+1 Day Programmable Thermostat 2H/2C, 24Vac/3Vdc (2 AA)

Item
T715
  • California Prop 65

FEATURES

• 4 sq. inch display
• Blue backlight
• Glow in the dark light button
• Easy access battery compartment
• Schedule copy features
• 5 Year Warranty
• 5 minute compressor delay protection (selectable on or off )
• Customizable staging logic
• Separate heating and cooling swing (cycle rate) adjustments

SPECIFICATIONS

• Application: 2 heat, 2 cool
• Programmability: 7 day, 5-1-1 or Non-Programmable
• Changeover: System Switch
• Display Range: 41˚F to 95˚F (5˚C to 35˚C)
• Control Range: 44˚F to 90˚F (7˚C to 32˚C)
• Display Accuracy: +/- 1˚F
• Heat Swing: Adjustable from 0.2˚F to 2.0˚F
• Cool Swing: Adjustable from 0.2˚F to 2.0˚F
• Terminals: Rc, Rh, G, Y , Y2, C, O, B, W, W2
• Load Rating: 1 amp per terminal, 1.5 amp maximum all terminals combined
• Power Source: 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) Battery power from 2 AA Alkaline batteries
• Operating Ambient: 32˚F to +105˚F (0˚C to +41˚C)
• Operating Humidity: 90% non-condensing maximum
• Mounting: Wall or Junction Box
• Dimensions: 4.7”W x 4.4”H x 0.8”D (119mm W x 112mm H x 20mm D)
• Warranty: 5 year warranty

Specification
Backlight Yes
Display Size 4 sq. in.
Millivolt Compatible Yes
Permanent Hold Yes
Program Options (Days) 7, 5+1+1
Stages (Conventional) 2 Heat, 2 Cool
Stages (Heat Pump) 2 Heat, 2 Cool
Touchscreen No
WiFi Capability No
Temporary Hold Yes
Remote Sensing Capability No
Power Method Hardwire (24Vac)/Battery (3Vdc)
Key Pad Lockout No
Humidification Controls No
Filter Indicator Yes
Battery Backup Yes
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 5
Exterior Dimensions (D) (inches) 1.100000
Exterior Dimensions (W) (inches) 4.700000
Exterior Dimensions (H) (inches) 4.400000
Shipping Weight (lbs) 5.000000
