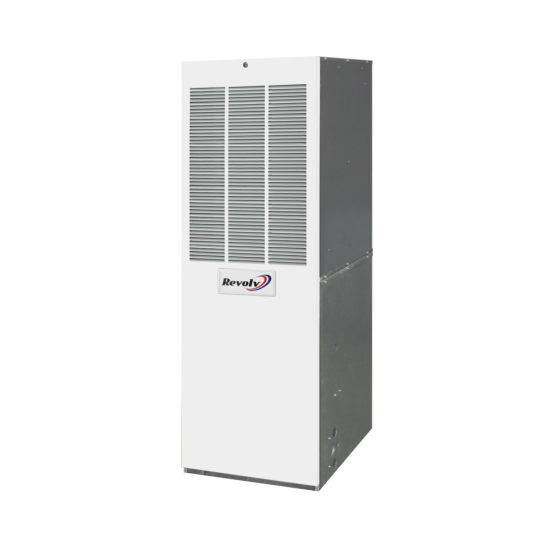

Style Crest® Revolv® E7ED Electric Furnace, Downflow, 9.2kW, 100% AFUE (R454B Ready)

FEATURES

4-TON AC-READY ECM BLOWER
16 dip-switch speed-settings and factory or field-installed 31-1/2” H coil box to support increasing coil sizes needed to meet increasing DOE minimum efficiencies.

MODERN CONTROLS
Quiet heater relays and an integrated control board, eliminating the need for an additional time-delay relay for split systems.

NEW & REPLACEMENT APPLICATION ACCESSORIES
Save the hassle of sourcing materials, field-fabrication, and repeat supply-house trips and depend on warranty and support handled directly by Style Crest’s dedicated HVAC team, offering the most competitive warranty coverage and service in the Manufactured Housing Industry.

SPECIFICATIONS

• Model: E7ED-B010K1

• Airflow: Downflow

• Coil Box: 31-1/2”

• Weight: 112lbs

• Heat Element Output @ 230V: 9.2kW (31MBH)

• Supply Circuit: Single

• Total Current: 43.7A

• MCA: 54.7A

• MOP: 60A
