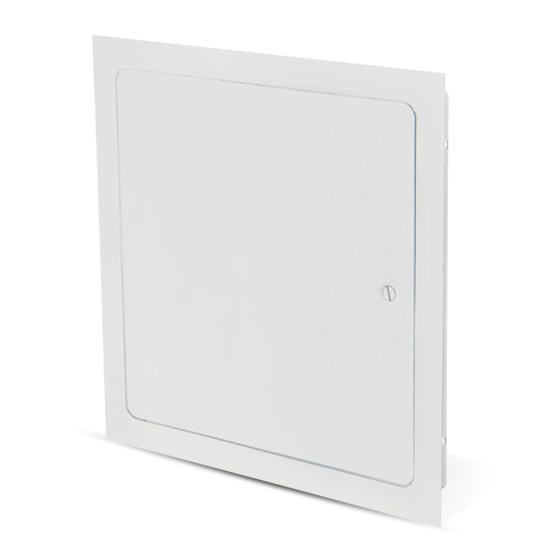

DW10X10PC-SDL Steel Hinged Drywall Access Door 10 in. x 10 in.

Item
DW10X10PC-SDL
  • California Prop 65

APPLICATIONS

Dry Wall Access Doors are ideally suited for new installations or for remodeling in masonry, tile, wood or other wall and ceiling surfaces. Door is fabricated from 14 gage, galvannealed steel with a white prime coat finish. Door features rounded safety corners.

FEATURES & BENEFITS

• Nominal Size: 10 in. x 10 in.
• Wall opening size: 10-1/2 in. x 10-1/2 in.
• Frame is galvannealed steel with a prime coat finish. Door Frame is a 14 gage one piece construction, 1” wide and provides perfect concealment of the rough wall opening. Wall frame is 16 gage provided with 1/4” mounting holes for fastening within the furred spaces allowing faster installation and fixing maximum clearance.
• Concealed continuous piano hinge.
• Screwdriver operated latch.
• White coated finish suitable for painting.

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 3
Exterior Dimensions (D) (inches) 10.000000
Exterior Dimensions (W) (inches) 10.000000
Exterior Dimensions (H) (inches) 3.000000
Shipping Weight (lbs) 3.000000
