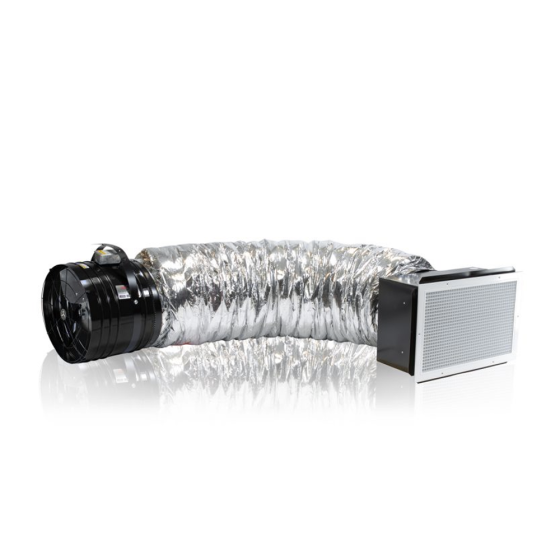

QuietCool® Stealth Pro 3.3X Whole House Fan 1,980 to 3,159CFM, 120Vac (1,053 to 1,580sq ft)

APPLICATIONS

Our Stealth Pro X Series is the efficient Whole House Fan that mastered low cost cooling with powerful results. With our sleek design, patented technology, and reliable production, you can utilize an ultra-energy efficient motor to keep your home cool and your money saved.

FEATURES & BENEFITS

• Airflow: Hi: 3,159 CFM / Low: 1,980 CFM
• HVI-916 Airflow (for CA Title 24 New Construction): Hi: 2,350 CFM / Low: 1,470 CFM
• Recommended SQFT Coverage @ 2-3 CFM per SQFT: Covers 1,053 SQFT to 1,580 SQFT
• Energy Use: Hi: 264 Watts / Low: 74.6 Watts
• Amps: Hi: 3.44 / Low: 1.02
• Motor Voltage: 120 VAC, 60 Hz
• # of Speeds: 2
• dBA: Hi: 47.4 / Low: 36.1
• Minimum Attic Clearance: 34”
• Duct Diameter: 16”
• Duct Length: 6 feet
• Motor Head Diameter: 16 1/2”
• Motor Head Length: 13 1/2”
• Dampers: Barometric Pressurized R5 Dampers
• Controls (Sold Separately): Included: 8 Hr Electronic Timer & HI-LOW-OFF switch (Optional: IT-36002 QuietCool RF Wireless Control Kit)
• Warranty: 15 Years
• Framing: None Required
• Joist Cutting: None Required; fits 16” or 24” on center
• Minimum Suggested Attic Venting: 4.22 SQ FT net free area
• Ceiling Rough Opening: 14 1/4” x 22 1/4”
• Removable Grille Outside Dimension: 16” x 24”

INCLUDES

• QC STL PRO3.3X Motorhead
• Ceiling Grille
• Cutout Template
• Window Locks
• Damper Box
• 6 Foot Duct
• Accessory Bag
• Control
