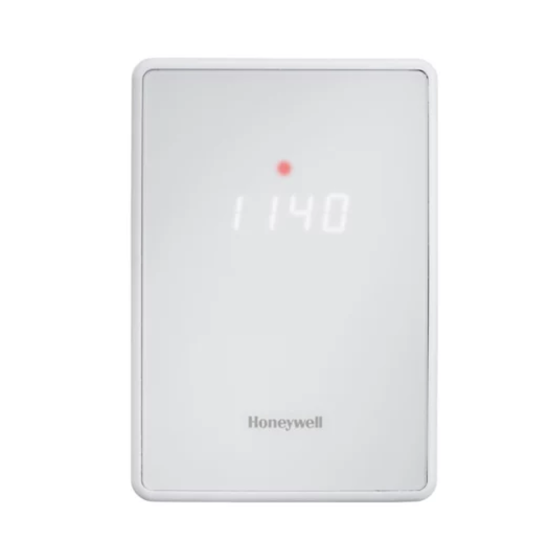

Honeywell Wall Mount CO2 Sensor with LCD
Item
C7233A1008
FEATURES
The C7233A series Wall Mount CO2 sensor provides analog or digital output signals for demand control ventilation systems. It ensures improved indoor air quality while minimizing energy costs.
LED DISPLAY• The C7233A1008 includes a flush face membrane and attractive white LED CO2 ppm display. All variants have red LED notification activated when CO2 level exceeds preset threshold.
PROGRAMMABLE SPST RELAY
• Programmable CO2 threshold setting to activate relay for ventilation signal or damper control.
SELF- CALIBRATION
• Automatic Background Calibration (ABC) algorithm ensures accuracy for 10 years or more.
SELECTABLE OUTPUT
• Analog output range is selectable 0/2 - 10 VDC and provides accurate proportional linear signal though entire sensing range 0 - 2000 ppm.
ADVANCED SENSING
• Highly accurate and reliable Non-Dispersion Infrared (NDIR) technology for CO2 sensing.
ELEGANT DESIGN
• Ultra compact size and elegant design with easy cleaning via smooth front membrane design.
IMPROVED VENTILATION
• Effective CO2 sensing supports demand controlled ventilation to balance indoor air quality with energy savings.
TEMPERATURE SENSING
• Optional accurate temperature sensor variant is available.
SPECIFICATIONS
• Mounting Positions: Wall Mounted• Operating temperature: +32 °F to +122 °F (0 °C to +50 °C)
• Storage temperature: -40 °F to +158 °F (-40 °C to +70 °C)
• Relative Humidity: 0-95% RH (non- condensing)
• Dimensions (L X W X H) inch (mm): 5-1/16 (128 mm) X 3-5/32 (80 mm) X 1 (25 mm)
• Mounting: Vertical surface with standard single-gang junction box.
• Response time: <20 seconds
• Measurement Range: 0-2000 ppm
• CO2 Relay/LED Alert Threshold Settings: 800, 1000, 1100, 1200 ppm
• Accuracy: ±(30 ppm +3% of reading)* within the range 400-2000 ppm ±75 ppm at 600 - 1000 ppm (When measured at sea level and 25 °C. Display are accurate and meet CA Title 24 , Part 6, CEC Standard - CO2.)
• Power Supply: 24 Vac/dc ±20%, 50/60 Hz (Class 2)
• Max. Power Consumption: 3 W
• Peak Current: (20 ms): 600 mA
• Relay Contact Rating: 1 A at 50 Vac/24 Vdc
• Linear Analog Output Voltage: 0/2 - 10 Vdc (resistive load greater than 5000 ohms).
• Linear Analog Output Current: 4-20 mA (resistive load less than 500 ohms)
• Wiring Connections Terminals: 24 AWG Maximum
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 4.000000 | Exterior Dimensions (W) (inches) | 4.000000 | Exterior Dimensions (H) (inches) | 4.000000 | Shipping Weight (lbs) | 1.000000 |
