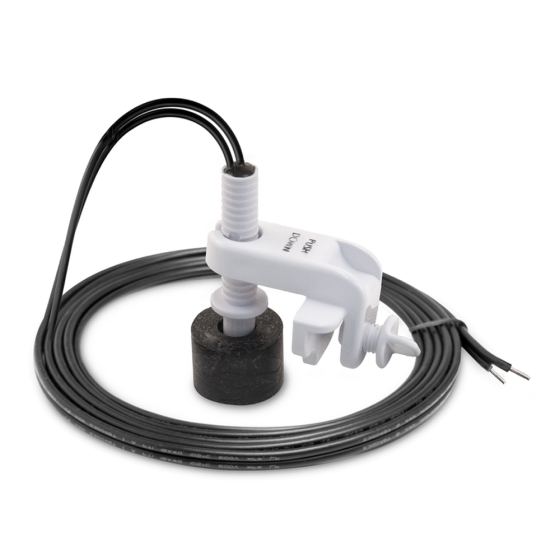

Rectorseal® Safe-T-Switch Float Switch 24V
Item
SS3
APPLICATIONS
Safe-T-Switch® Model SS3 specially designed mounting bracket mounts firmly over the edge of most drain pans. The patented magnetic reed switch and slim profile can be installed on primary or auxiliary drain pans. The SS3 switch is easily removed for cleaning and servicing.
FEATURES & BENEFITS
• Condensate overflow switch
• Adjustable ratcheting float level
• Magnetic reed switch
• POP Blister packaged
• Fits 1" to 2" drain pan height
• 24-Volts A/C
• Maximum 1.25 Amp. Carrying Capacity
• 6ft., 18 AWG Lead Wires.
INCLUDES
• Bracket
• Stem assembly (includes Float, Tag, and Stem with wire)
• Thumb Screw (with 5/16 UNF thread)
• Warning Sticker
| Electrical | |
|---|---|
| Voltage | 24 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.2 | Exterior Dimensions (D) (inches) | 5.500000 | Exterior Dimensions (W) (inches) | 1.750000 | Exterior Dimensions (H) (inches) | 8.250000 | Shipping Weight (lbs) | 1.000000 |
