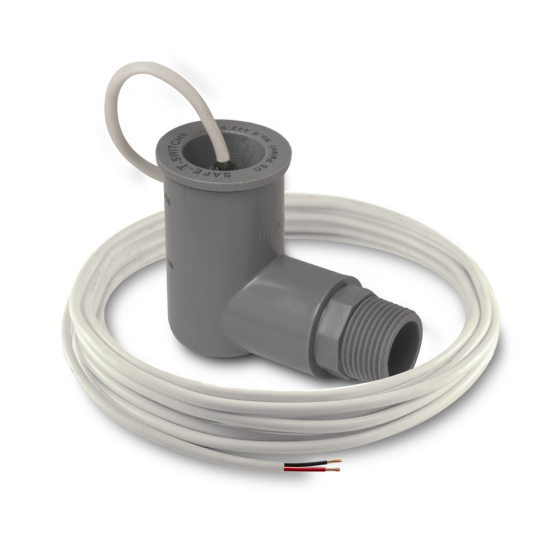

Rectorseal® Safe-T-Switch Condensate Overflow Switch 3/4", 24V (Plenum Rated)
Item
SS2AP
APPLICATIONS
The SS2AP Safe-T-Switch is plenum rated and listed to UL-2043. Using the 3/4" adapter, it can be installed on the auxiliary outlet of the primary drain pan. The magnetic reed switch allows it to be installed off-center and still function correctly.
FEATURES & BENEFITS
• Condensate overflow switch
• Magnetic reed switch
• Connect to either red or yellow wire
• Potted, electrically water sealed reed/magnet switch design.
• UL508 and UL2043 Compliant
• Schedule 80 CPVC components
• 24 Vac
• 1.25 Amp Switching Capacity
| Electrical | |
|---|---|
| Voltage | 24 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Fitting Size | 3/4" |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3 | Exterior Dimensions (D) (inches) | 2.000000 | Exterior Dimensions (W) (inches) | 4.000000 | Exterior Dimensions (H) (inches) | 6.000000 | Shipping Weight (lbs) | 3.000000 |
