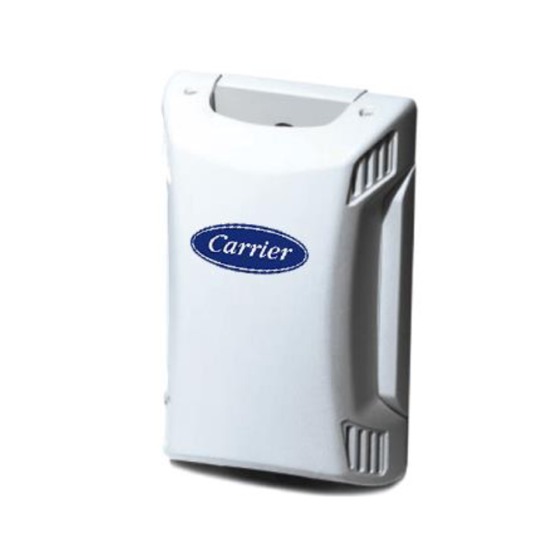

Space Temp W/ Setpoint, CO2

APPLICATIONS

The Carrier Carbon Dioxide Room Series Sensor with Temperature, Setpoint, and Override monitors the carbon dioxide (CO2) levels in commercial, school, and office-type environments. The concentration of CO2 is a strong indication of the overall indoor air quality. The NSA-HH/CO2-R2 Series is based on a single beam, non-dispersive infrared technology and is a cost-efficient solution for measuring carbon dioxide levels for building climate control. In addition, ABC software eliminates the need for manual calibration. Carbon Dioxide concentration is measured up to 2,000 ppm and is converted into proportional analog outputs. The factory default output is 4-20 mA, whereas 0-5 VDC and 0-10 VDC outputs are field selectable via integral dip switches. Thermistor temperature outputs, along with setpoint and override, are available as options for this configuration as well. The NSA-HH/CO2-R2 Series provides data which can be used in conjunction with a Building Automation System or Demand Control Ventilation to decrease energy consumption while creating a healthier indoor climate.

FEATURES & BENEFITS

• Supply Voltage: 24 VAC +/-20%, 50/60 Hz (half-wave rectifier) | 16.5-40 VDC Max.
• Power Consumption: 3 VA for 24 VAC, 3W for 24 VDC (peak); <0.9W (average)
• Sensing Technology: Single beam infrared sensing technology (NDIR)
• Sensing Method: Diffusion
• Measurement Range Default: 0 to 2,000 ppm
• Extended CO2 Ranges: Up to 10,000 ppm (factory set)
• Extended Range Accuracy: +/- 30 ppm and +/- 5% of reading
• CO2 Output Signal: Output 1: 0-5 VDC or 0-10 VDC (Default) | Output 2: 4-20 mA (500 Ohm Load maximum)
• Fail Safe: Polarity protected
• CO2 Accuracy1: +/- 40 ppm +/- 3% of reading (@ 15-35°C; 20-70% RH and 101.3 kPa)
• Pressure Dependence: + 1.6% reading per kPa (deviation from standard pressure 101.3 kPa)
• Response Time: ≤ 2 minutes, diffusion
• Warm-Up Time: < 1 minute (@ full specs < 15 minutes)
• Temperature Accuracy: +/- 1°F (+/- 0.6ºC)
• Operating Temperature Range: 32 to 122ºF (0 to 50ºC)
• Operating Humidity Range: 0 to 95%, non-condensing
• Enclosure: ABS, Plastic, White, UL94-HB
• Sensor Coverage Area: 7,500 sq. ft maximum
• Mounting Height: 4-6 ft
• Sensor Life2: > 15 years (typical)
• Calibration3 ABC algorithm (Automatic Baseline Correction)
• Product Dimensions: (H) 4.50” (114.30 mm) x (W) 2.75” (69.85 mm) x (D) 1.12” (28.45 mm)
• Product Weight: 0.230 lbs (0.104 kg)
• Agency Approvals: EMC Directive 2014/30/EC | RoHS Directive 2011/65/EU
