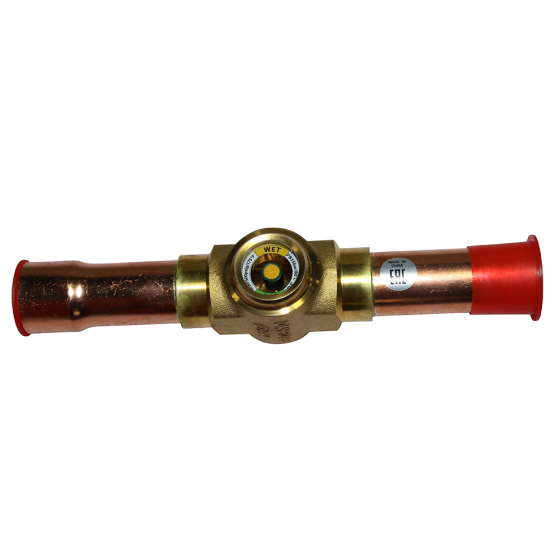

Sight Glass 7/8" ODF x 7/8" ODM (R22)

FEATURES & BENEFITS

• Body material: Brass.
• Connection material: Copper.
• Green: max moist con@25 °C: R22: 150 ppm.
• Green: max moist con@43 °C: R22: 250 ppm.
• Inlet connection type: Solder, ODF.
• Inlet size [in]: 7/8 IN.
• Inlet size [mm]: 22 mm.
• Max. Working Pressure [bar]: 35 bar.
• Max. Working Pressure [psig]: 500 psig.
• Moisture indicator: I indicator.
• Outlet connection type: Solder, ODM.
• Outlet size [in]: 7/8 IN.
• Outlet size [mm]: 22 mm.
• Product accessories: No.
• Product group: Sight glasses.
• Product name: Sight glass.
• Quantity per packing format: 28 pc.
• Refrigerants: R22.
• Serviceable: No.
• Temperature range [°C] [Max]: 80 °C.
• Temperature range [°C] [Min]: -50 °C.
• Temperature range [°F] [Max]: 175 °F.
• Temperature range [°F] [Min]: -58 °F.
• Type: SGI 22s.
• UL approved refrigerants: R22.
• Yellow: min moist con@25 °C: R22: 300 ppm.
• Yellow: min moist con@43 °C: R22: 500 ppm.
