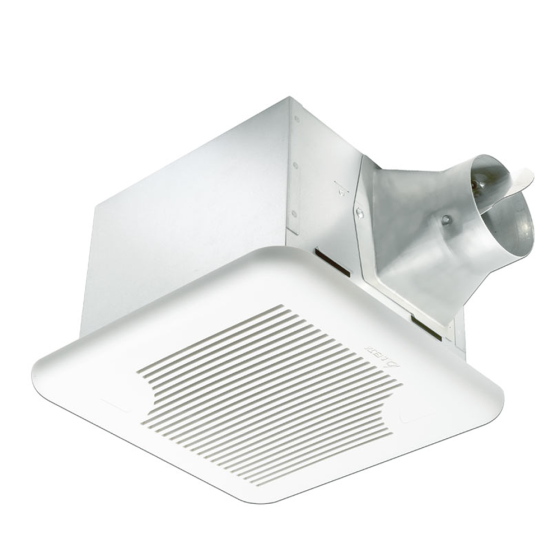

The Delta Breez SIG80D ENERGY STAR® Certified Ventilation Fan with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 80 CFM and loudness rating of 0.3 Sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 8.7 Watts with efficiency rating of 9.7 CFM/Watt; fan will feature LED indicator running light, motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
FEATURES & BENEFITS
• Energy Star® Certified with innovative brushless DC motor technology • Perfectly quiet operation at less than 0.3 Sones • Ceiling mount ventilating fan with dual speed rated for continuous running • Allows fan to operate in full speed mode or continuous low speed mode by manual switch • For continuous low speed mode, the fan runs continuously at a user-preset lower level (0, 30, 50, or 60 CFM) • Delay time preset positions (0.5, 5, 15, 30, 45, or 60 minutes) • Energy efficiency at 9.7 CFM/Watt • Green and amber LED indicator lights to show continuous low speed and full speed modes • Airflow (CFM @ 0.1 SP): 30/50/60/80 • Sones: 0.3 • Power Consumption (Watts): 8.7 • Energy Efficiency (CFM/Watts): 9.7 • Current (Amps): 0.30 Max • Power Rating (Vac/Hz): 120/60
DC Motor/Blower • Power rating of 120 volts/60Hz • DC brushless motor engineered to run continuously • Motor equipped with thermal cutoff fuse • Removable with permanently lubricated plug-in motor • Allows fan to operate in full speed mode or continuous low speed mode by manual switch • Duct diameter no less than 4” • For continuous low speed mode, the fan runs continuously at a user-preset lower level (0, 30, 50, or 60 CFM) • User-preset delay time positions (0.5, 5, 15, 30, 45, or 60 min) • Built-in soft start function to increase bearings’ life • Automatically powers off when impeller is locked abnormally • Self-compensating motor speed for intended airflow when static pressure is encountered
Housing • Galvanized steel body • Detachable 4” diameter metal duct adapter • Built-in backdraft damper • Easy installation with expandable extension bracket
Grille • Attractive design using ABS material • Attaches directly to housing with torsion springs
LED Indicator • Green and amber LED indicator lights show continuous low speed and full speed modes
