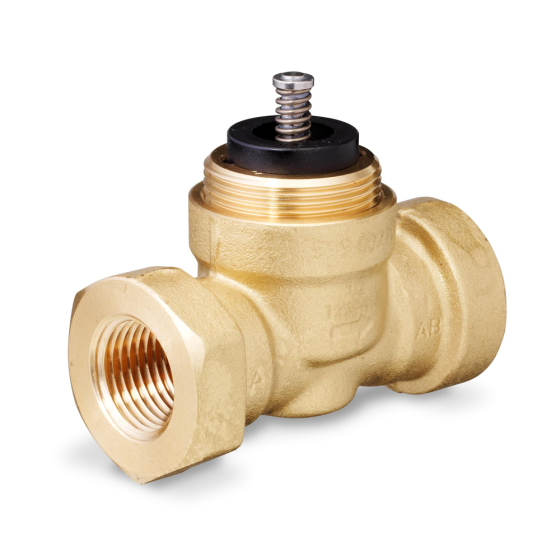

Siemens 599 Series 2-Way Zone Valve, 1",7.0 Cv, linear, ANSI 125, 1/10" stroke, NPT

FEATURES

The 599 Series Zone Valves work with any SFA/P Series, SSA or SSE/F Series electric actuator. The actuators accept 24 Vac/dc, 24 Vac or 120 Vac power supplies signal to provide two-position, three-position or 0 to 10 Vdc control. Typical applications include hot or chilled water for zones with radiators; floor heating via manifolds; fan coil units; cooling ceilings (Zone Valves); wall-mounted boilers (zone valves); and VAV applications.

Zone valves have a direct-coupled universal bonnet. SFA/P, SSA, and SSE/F actuators are UL listed. Actuators have a direct-coupled installation; are hand-tightened without tools, provide manual override and visual position indication.

Application

○ Zones with radiators

○ Floor heating by manifolds

○ Fan coil units

○ Induction units

○ Cooling ceilings (zone valves)

○ Wall-mounted boilers (zone valves)

○ VAV applications

SPECIFICATIONS
