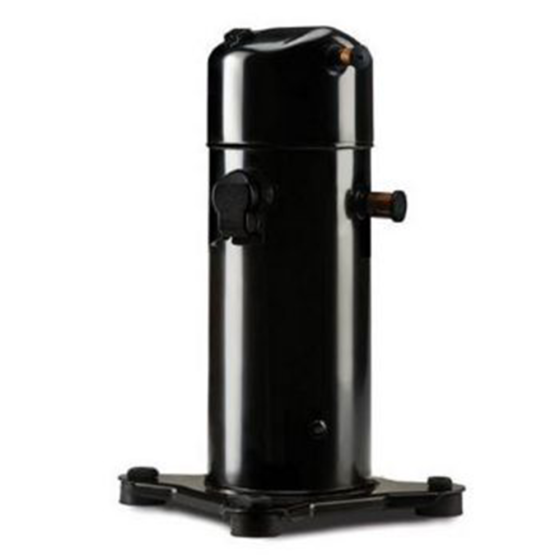

LG Hermetic Scroll Compressor R410A, 41,500BTU, 208/230Vac, Three Phase
Item
ABG042RAZ
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 41,500
• Refrigerant: R410A
• Connection Type: Molded Plug (Included)
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 16.3
• LRA: 123
• RLA: 10.5
• Hertz: 60
• Suction Line Size: 7/8"
• Suction Line Height: 11.61"
• Discharge Line Size: 1/2"
• Discharge Line Height: 15.51"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | Voltage | 208/230 |
| Specification | |
|---|---|
| BTU Rating | 41 to 45kBTU | Oil | POE (Polyester) | Compressor Type | Scroll | Refrigerant | R-410A |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 35 | Exterior Dimensions (D) (inches) | 22.000000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 11.000000 | Shipping Weight (lbs) | 35.000000 |
