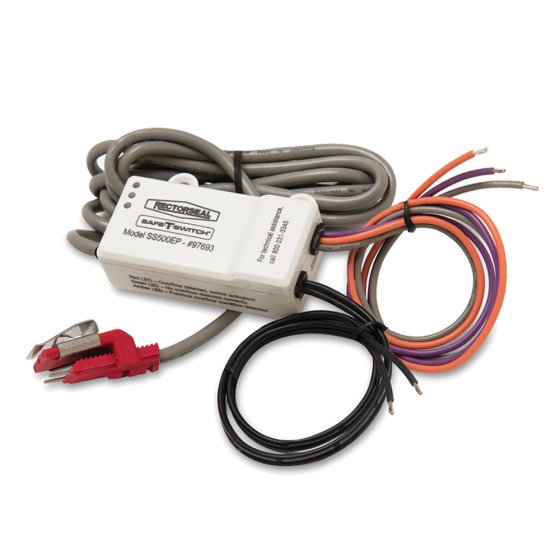

Rectorseal® Safe-T-Switch Electronic Overflow Shut-Off Switch 24V
Item
SS500-EP
APPLICATIONS
Safe-T-Switch® Model SS500EP Electronic Overflow Switch is installed on primary drain pan when plenum rating is needed. Small size and slim profile great for use on commercial rooftop downflow units. The SS500EP's logic circuit continuously samples the probes for water and shuts down the system if water is detected.
FEATURES & BENEFITS
• Electronic probe sensor
• 5-wire design
• Onboard LED indicator
• Plenum rated wire
• Connect to either red or yellow wire
• 24 VAC
• 5 Amp. Switching Capacity
• Class 2
• 12”, 18 AWG Lead Wires
• 72” plenum rated tail.
INCLUDES
• Central processing unit
• 4P Probe
• Reset instruction tag
• Warning Sticker (not shown)
Electrical | |
---|---|
Voltage | 24 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 2 | Exterior Dimensions (D) (inches) | 4.000000 | Exterior Dimensions (W) (inches) | 4.000000 | Exterior Dimensions (H) (inches) | 4.000000 | Shipping Weight (lbs) | 2.000000 |
