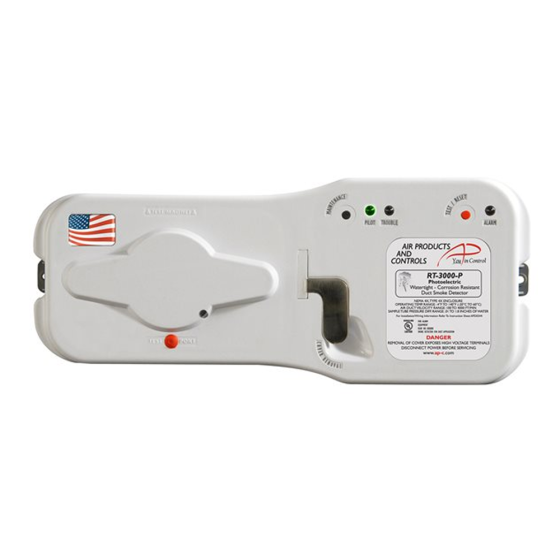

Air Products and Controls 4-Wire Photoelectric Smoke Detector

FEATURES

The RT-3000-P is a photoelectric weather tight duct smoke detector. The weathertight, NEMA 4X rated, corrosion resistant enclosure, coupled with extended temperature listings, allow installation in the widest possible range of indoor/outdoor environments.

• Patented No-Tools Required front or rear loading, and sampling/exhaust tubes removing

• Patented Test Port Valve allows for aerosol smoke testing without cover removal

• NEMA 4x rated watertight and corrosion resistant enclosure for hazardous indoors and outdoors applications

• Patented Maintenance Mode offers 3-minute interval for test and maintenance functions with no extra trouble reports to the system (auto shut-off upon cover latch engagement)

• No-tools terminal blocks for easier wiring with built-in test meter probe access

• Detector head’s LED indicates for normal status (flashing light), alarm status (solid state), or trouble (yellow light)

• Raised LED indicators have 180 visibility

• Magnet test capability (magnet included)

• All gaskets are permanently attached and pre-installed

• Unit’s PCB board includes green pilot, red alarm yellow for trouble visual indicators, visible with cover in place

• Cover tether keeps cover with detector and a single cover latch releases the cover from the unit

• Reset switch is also an alarm test switch

• Operating voltages: 230VAC, 115VAC, 24VAC, 24VDC

• Relay contacts

○ Two sets of 10A form C alarm contacts

○ One set of 10A form C trouble contacts

○ One set of 1A form “A” alarm contacts and one set of

○ 7A form “B” trouble contacts for FACU interface

• Standard “plug-in” UL268 photoelectric heads with advances internal dust filtering design

• No additional screens or filters to clean

• Complete wiring details permanently attached to unit

• Low-Flow Technology (between 100-4000 ft./min)

• Listed for high-temperature applications

• Compatible with building automation and fire alarm systems

SPECIFICATIONS

• Sampling Tubes:

○ FAST Tube - Sectional sampling tube, kit fits up to 90” duct width

○ STN-1.0 - Sampling tube for 6” to 12” duct width

○ STN-2.5 - Sampling tube for 1’ to 3’ duct width

○ STN-5.0 - Sampling tube for 3’ to 5’ duct width

• Power Requirements (without accessories)

○ Standby

○ 230VAC, 12 mA

○ 115VAC, 22 mA

○ 24VAC, 55 mA

○ 24VDC, 14 mA

• Alarm

○ 230VAC, 18 mA

○ 115VAC, 32 mA

○ 24VAC, 190 mA

○ 24VDC, 68 mA

• Relay Contact Rating

○ Alarm Contacts

○ Resistive load: 2 sets form “C” rated at 10 Amps @ 115VAC

○ Resistive load: 1 set form “A” rated at 2 Amps

○ Trouble Contacts

○ Resistive load: 1 set form “C” rated at 10 Amps @ 115VAC

• Air Velocity: 100 to 4,000 ft./min.

• Ambient Temperature: -4°F to 140°F (-20°C to 60°C)

• Humidity: 10% to 93% RH (@32°C) Non-Condensing / Non-Freezing

• Wiring: Solid or stranded: #14 to #24 AWG terminals

• Approvals: UL & CUL Listed (UL268A, UROX, UROX7) File # S2829 CSFM Listed (3240-1004:105)

• Material: Gray plastic backbox, white plastic cover (Makrolon 94V-0)

• Dimensions: 13 ½” L x 5 ½” W x 2 ¼” H

• Max Net Weight: 3 ½ lbs.

INCLUDES

• RT-3000-P Duct Smoke Detector

• 7” exhaust tube

• FAST Tube sectional sampling tube starter

• Sampling tube end cap

• Mounting template

• Test magnet

• Mounting hardware

Specifications

Safety Standards
California Prop 65	Yes
UL Listed	Yes

Weights and Dimensions
Operating Weight (lbs)	5
Exterior Dimensions (D) (inches)	16.000000
Exterior Dimensions (W) (inches)	6.500000
Exterior Dimensions (H) (inches)	5.000000
Shipping Weight (lbs)	9.000000

Resources

RT-3000-P_FastTubeInstallation.pdf

RT-3000-P_Installation.pdf

RT-3000-P_Specifications.pdf
