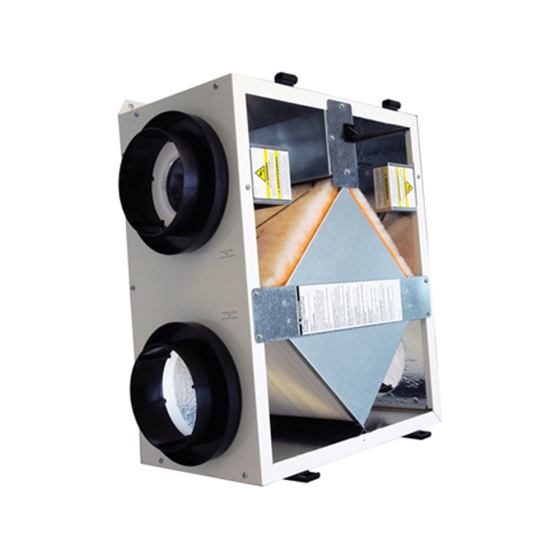

RenewAire® EV Energy Recovery Ventilator 6-8" Round Ducts, 110CFM, 120Vac

Item

EV90

FEATURES

Many modern homes are built airtight for energy efficiency and comfort. The result is that natural air infiltration rates are often too low to provide acceptable indoor air quality. The solution is to use an ERV to remove gaseous pollutants such as odors, winter-time excess humidity, formaldehyde, smoke, radon, vapors from cleaning products, and other chemicals. The removal of dust and other small particles from your home is not the function of an ERV.

SPECIFICATIONS

• Ventilation Type: Static plate, heat and humidity transfer

• Typical Airflow Range: 40–110 CFM

• Unit is HVI Tested/Certified per CSA C439 Protocol: Using one L-35-G5 Core

• White painted cabinet

• Line-cord power supply

• Low-voltage circuit for controls

• Unit may be mounted in any orientation

• Cross-core differential pressure ports

• Control: Onboard 24VAC transformer/relay package

• Filters: Total qty. 2, MERV 8, spun-polyester media: 9 5/8" x 10 1/2" x 1"

• Unit Weight: 36 lbs.

• Motor(s): Qty. 2, Standard motorized impeller blowers

• Wattage: 46

• Voltage: 120Vac

• Hz: 60

• Phase: 1

• FLA: 0.35

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	40
Exterior Dimensions (D) (inches)	29.000000
Exterior Dimensions (W) (inches)	22.000000
Exterior Dimensions (H) (inches)	15.000000
Shipping Weight (lbs)	40.000000

Specification
CFM	110

Resources

EV90_Drawing.pdf

EV90_Manual.pdf

EV90_Submittal.pdf
