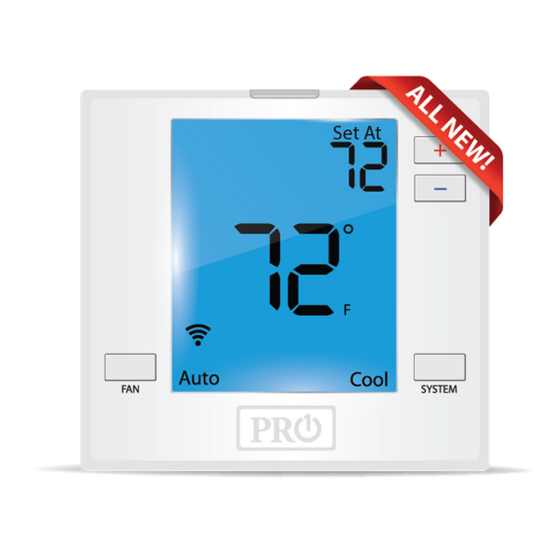

Pro1 T751I Programmable (Through App Only) Thermostat with Wi-Fi 2H/2C (4H/2C HP), 24Vac
FEATURES The T701i has defined what a WIFI thermostat can be. Simple, affordable, and exclusively for the professional trade. The T751i provides these same attributes to the heat pump market. This model is simple to install, simple to operate and simple to sell. "Programming is optional, WIFI is optional, but comfort is guaranteed.
• 7 sq. inch display • Blue backlight • Glow in the dark light button • Electric or Gas configurable • Separate heating and cooling swing (cycle rate) adjustments • Room temperature calibration adjustments • 5 minute compressor delay protection (selectable on or off) • Simple private label badge system • Easy wire color coded terminal blocks • Universal sub-base • Mounts on wall or junction box • 24v power • 5 year warranty SPECIFICATIONS • Application: 2 Heat, 2 Cool Conventional / 4 Heat, 2 Cool Heat Pump • Programmability: Programmable Through App • Changeover: System Switch • Display Range: 41˚F to 95˚F (5˚C to 35˚C) • Control Range: 44˚F to 90˚F (7˚C to 32˚C) • Display Accuracy: +/- 1˚F • Heat Swing: Adjustable from 0.2˚F to 2.0˚F • Cool Swing: Adjustable from 0.2˚F to 2.0˚F • Terminals: Rc, Rh, Y, Y2, W2 , W/E, G, B, O • Load Rating: 1 amp per terminal, 1.5 amp maximum all terminals combined • Power Source: 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) • Operating Ambient: 32˚F to +105˚F (0˚C to +41˚C) • Operating Humidity: 90% non-condensing maximum • Mounting: Wall or Junction Box • Dimensions: 4.7”W x 4.4”H x 0.8”D (119mm W x 112mm H x 20mm D) • Warranty: 5 year warranty
Specification
Stages (Conventional)
2 Heat, 2 Cool
Stages (Heat Pump)
4 Heat, 2 Cool
Power Method
Hardwire (24Vac)
Program Options (Days)
7
Display Size
7 sq. in.
WiFi Capability
Yes
Temporary Hold
Yes
Permanent Hold
Yes
Millivolt Compatible
No
Touchscreen
No
Battery Backup
No
Filter Indicator
No
Humidification Controls
No
Key Pad Lockout
No
Remote Sensing Capability
No
Safety Standards
California Prop 65
Yes
Weights and Dimensions
Operating Weight (lbs)
2
Exterior Dimensions (D) (inches)
2.000000
Exterior Dimensions (W) (inches)
5.000000
Exterior Dimensions (H) (inches)
5.000000
Shipping Weight (lbs)
2.000000
