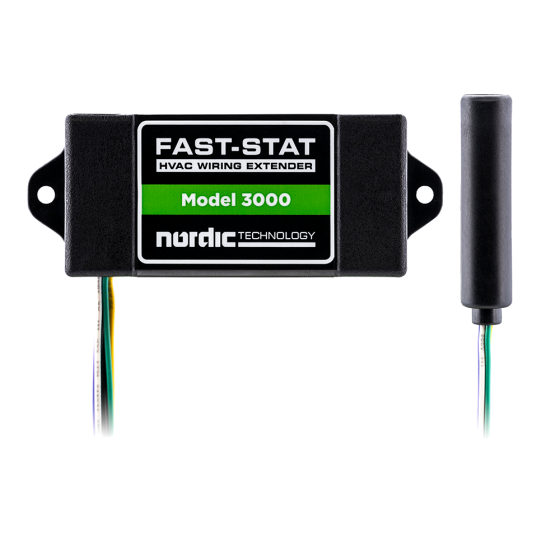

FAST-STAT Model 3000 Wiring Extender 24Vac

  • California Prop 65


The Model 3000 provides two additional control wires between a thermostat and indoor unit, or indoor unit and outdoor unit.


• Compatible with all 24VAC heating and cooling systems.
• Can provide a common connection ā€˜Cā€™ using a thermostat cable with 3 or more wires. For adding a common with only 2 wires see the Model 5000 or Common Maker.
• This product should only be installed by a qualified technician.
• Requires a Class 2 transformer providing 23-28VAC
• The total connected load must not exceed 2 amps.
• The connected load cannot operate at more than 30VAC (not designed for direct connection to 120VAC equipment).

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 1
Exterior Dimensions (D) (inches) 4.800000
Exterior Dimensions (W) (inches) 7.600000
Exterior Dimensions (H) (inches) 1.600000
Shipping Weight (lbs) 2.000000
