Gas Conversion Kit (NG to LP)

PRODUCT DETAILS

This kit is designed for use in the furnaces listed below:

CONDENSING FURNACE MODEL NUMBERS BEGINNING WITH:
59SC2, 59SP2, 59SC5, 59SE5, 59SP5, 912S, 915S, 922S, 925S, and PG92S are 4-Way Multipoise, Hot Surface Ignition, Condensing Furnaces with 40,000 to 140,000 btuh gas input rates. Not all models have 140,000 btuh.

NON-CONDENSING FURNACE MODEL NUMBERS BEGINNING WITH:
58DL, 58PH, 58ST, 310A, 310J, 311A, 311J, 313A, 313J, PG8JA, PG8JE, PG8MA, and PG8ME 33.3-Inch High, Induced-Combustion, Hot-Surface Ignition, Single-Stage, Non−Condensing 4-Way Multipoise Furnaces with 42,000 to 154,000 btuh gas input rates ONLY.

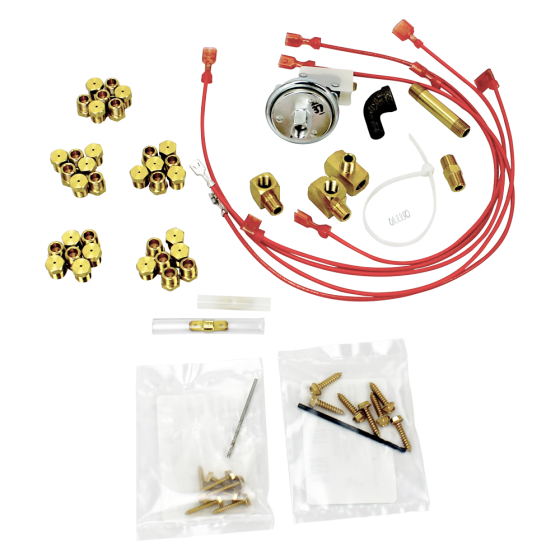

INCLUDES

• Regulator Spring Kit: EF39ZW023 (QTY 1)
• Low Gas Pressure Switch: HK02LB008 (QTY 1)
• Orifice (1.30mm): 323751-702 (QTY 7)
• Orifice (1.25mm): 323269-703 (QTY 7)
• Orifice (#55): 323269-704 (QTY 7)
• Orifice (#56): 323272-702 (QTY 7)

• Bag Assembly: 337932-701 (QTY 1)
• Mixer Screw: FAJ5812B (QTY 7)
• Drill Bit (7/64): 328456-402 (QTY 1)

• Bag Assembly: 337932-702 (QTY 1)
• Mixer Screw: 327593-401 (QTY 7)
• Drill Bit (5/64): 328456-401 (QTY 1)

• Bag Assembly: 337932-703 (QTY 1)
• Black Iron Street Elbow 1/8" NPT: CA15RA001 (QTY 1)
• Connector 1/4": 66175D55 (QTY 1)
• Wire Tie: HY76TB125 (QTY 1)
• Brass Hex Nipple 1/8" NPT: CA52JZ103 (QTY 1)
• Brass Tee 1/8" NPT: CA21JZ001 (QTY 1)
• Brass Street Elbow 1/8" NPT: (QTY 1)
• Brass Nipple 1/8" NPT x 2": CA01JZ001 (QTY 1)
• Brass Street Tee 1/8" NPT: CA21JQ001 (QTY 1)
• SPLC Connector 3/16": HY89SC047 (QTY 1)
• Orange Wire 18" (QTY 1)
