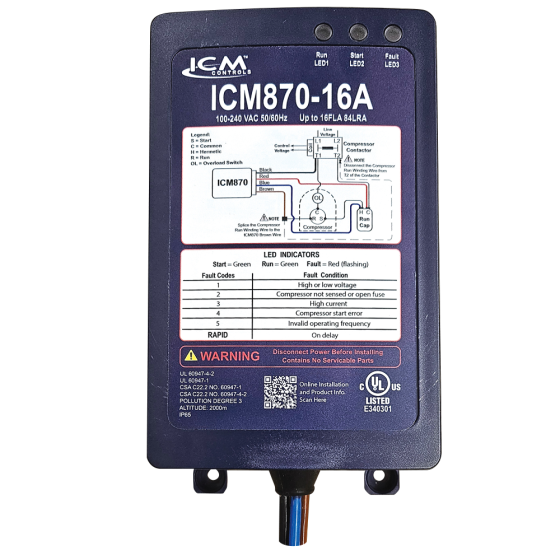

ICM® Soft Start Kit

FEATURES

The ICM870 series soft starts ARE compatible with 2-stage HVAC units. If your 2-stage unit has two compressors, you will need two ICM870 units.

The ICM870 Soft Start is intended for residential, commercial, RV & marine applications. The ICM870 integrates compressor or motor in-rush current over startup time, thus reducing peak current demand on a power supply source by up to 70%.

Effectively reducing power draw to the A/C, the ICM870 utilizes a built-in self learning algorithm to deliver the optimal in-rush current per application. The ICM870 will monitor system health including voltage, current, compressor startup and integrity. Upon a fault condition, it will halt operation and initiate a 3 minute anti-short cycle routine while providing diagnostic fault information by means of an LED indicator.

NOTE: The ICM870 Series Soft Starts are NOT recommended to be used with air conditioners or heat pumps which have control boards that sense compressor current and perform a lock out for fault conditions.

• Reduces in-rush current/draw necessary at startup by up to 70%

• Prolong the life of the A/C by reducing excessive torque, wear and tear

• Built-in dynamic start delay

• Reduce loud noises, light flickering, and breaker trips

• Built-in self-learning algorithm

• Over-current protection

• Over/under voltage monitoring

• Built-in start capacitor

• LED fault indicators

• Ultrasonic sealed tamper-proof enclosure

• Installation hardware is included

SPECIFICATIONS

• Inputs: L1 & L2

• Nominal voltage: 120 VAC, 240 VAC

• Over voltage limits: 120 VAC nominal = 140 VAC, 240 VAC nominal = 264 VAC

• Under voltage limits: 120 VAC nominal = 95 VAC, 240 VAC nominal =195 VAC

• Outputs: Compressor

• Current: Maximum nominal = 9A and 16A

• Over current limits:

○ ICM870-9A = 11.25A

○ ICM870-16A = 20A

• Operating temperature: -40°F to 131°F (-40°C to 55°C)

• Storage temperature: -40°F to 149°F (-40°C to 65°C)

• Humidity: 0-95% non-condensing

• Enclosure: IP65/Type 4X

• Dimensions: 7.94” x 4.20” x 2.10”

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	1
Exterior Dimensions (D) (inches)	2.000000
Exterior Dimensions (W) (inches)	3.000000
Exterior Dimensions (H) (inches)	6.000000
Shipping Weight (lbs)	1.000000
