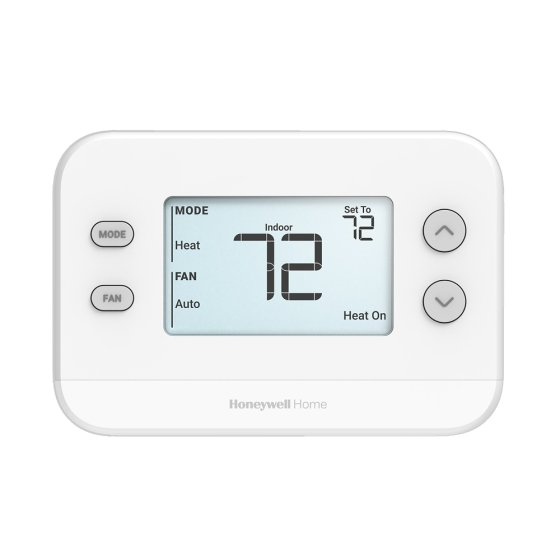

Honeywell® FocusPRO® Non-Programmable Thermostat 1H/1C, 24Vac/3Vdc (2 AA)
FEATURES The Honeywell Home FocusPRO® N100 is designed for pro ease-of-use and profitability. It reduces job complexities and time on-site while supporting recurring business thanks to its broad system compatibility, UWP® wall plate, large display and clear font, snap-on private label, and competitive price.
SPECIFICATIONS • Application: 24 Vac systems, single stage heat + cool systems. Gas, Oil, Electric, or Steam/Radiant hot water Systems. Single stage heat pumps without Auxiliary Heat • Thermostat Type: Non programmable, Digital • Stages: 1 Heat /1 Cool Conventional Systems, 1 Heat /1 Cool Heat Pump Systems • Display Type: LCD Screen • Display Size: 4.09 sq. in. • Display Language: English • Displayed Information: Mode, Current Temperature, Set Temperature, Status Display, Fan • Modes of Operation: Heat, Off, Cool, Auto • Program Type: Manual / Not Programmed • Energy Star Certified: No • Alerts and Reminders: Battery Replacement, Heat Pump Failure, Filter Change • Heat-Cool Changeover: Auto or Manual • Power Supply: Battery, Hardwired • Power Source: Hardwired, Battery Operated • Frequency: 60 Hz • Number of Batteries: 2 • Battery Type: AA Alkaline • Color: White • Ambient Operating Temperature (Max): 120 °F, 49 °C • Ambient Operating Temperature (Min): 32 °F, 0 °C • Differential Temperature: ± 1 °F, ± 0.5 °C • Operating Relative Humidity (Max): 90% RH, non-condensing • Operating Relative Humidity (Min): 5% RH, non-condensing • Temperature Accuracy: 1 °F, 0.5 °C • Electrical Connection Type: UWP Mounting System • Mounting Type: UWP Wall Plate, Horizontal Mount • Set point Temperature (Max): Heat: 90 °F, Cool: 99 °F, Heat: 32 °C, Cool: 37 °C • Set point Temperature (Min): Heat: 32 °F, Cool: 50 °F, Heat: 0 °C, Cool: 10 °C • Shipping and Storage Temperature (Max): 120 °F, 49 °C • Shipping and Storage Temperature (Min): -20 °F, -29 °C • Mounting Location: Wall • Switch Type: Relay • Product Height: 3.44 in, 87 mm • Product Width: 5.13 in, 130 mm • Product Depth: 1.188 in , 29.5 mm • Features: Backlit Display , Filter Change Reminder INCLUDES • Thermostat • UWP wall plate • Decorative cover plate with J-box adaptor • Mounting hardware • AA batteries • Literature
Specification
Stages (Conventional)
1 Heat, 1 Cool
Stages (Heat Pump)
1 Heat, 1 Cool
Power Method
Hardwire (24Vac)/Battery (3Vdc)
Display Size
4.09 sq. in.
Temporary Hold
No
Permanent Hold
No
Millivolt Compatible
Yes
Touchscreen
No
Battery Backup
Yes
Filter Indicator
Yes
Key Pad Lockout
No
Safety Standards
California Prop 65
Yes
Weights and Dimensions
Operating Weight (lbs)
1
Exterior Dimensions (D) (inches)
6.000000
Exterior Dimensions (W) (inches)
4.000000
Exterior Dimensions (H) (inches)
2.000000
Shipping Weight (lbs)
1.000000
