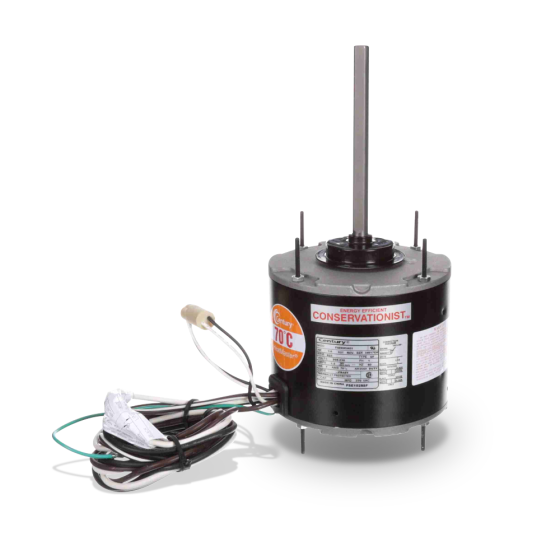

Century® HeatMaster® Condenser Fan Motor 1/4 HP, 825 RPM, 208/230Vac, 1.5A, 5µF/370Vac, 1 Speed, 70°C (PSC)

Item
FSE1028SF
  • California Prop 65

PRODUCT DETAILS

• Thermally Protected
• 48" Leads
• Extended Studs Shaft End and Lead End, Mounting Holes in Shell, Belly Band

FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/4
• RPM: 825
• Number of Speeds: 1
• Rotation: Reversible
• Voltage: 208/230Vac
• Amperage: 1.5
• Capacitor: 5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: F
• Ambient Temperature: 70 °C
• Shaft Size: 0.50 x 6.5

Specification
Ambient Temperature 70°C
Bearing Type Ball
Motor Frame 48
Motor HP 1/4
Motor Type PSC
Mounting Type Thru Bolt/Mounting Holes/Belly Band
Number of Speeds 1
RPM 825
Shaft Diameter 0.50
Shaft Length 6.5
Electrical
Amps 1.5
FLA 1.5
Hertz 60
Voltage 208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 20
Exterior Dimensions (D) (inches) 14.000000
Exterior Dimensions (W) (inches) 7.000000
Exterior Dimensions (H) (inches) 7.000000
Shipping Weight (lbs) 20.000000
