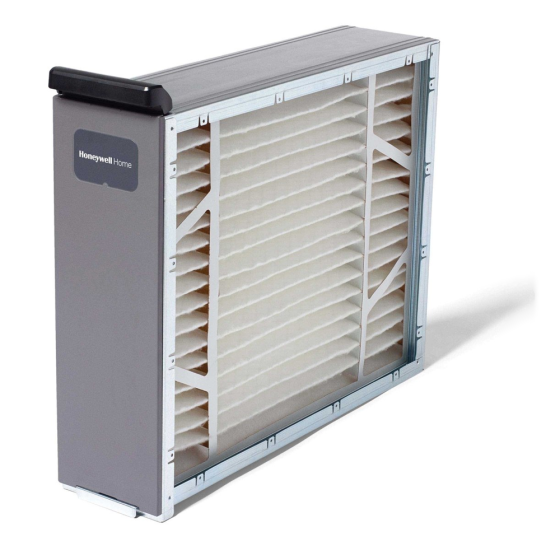

Honeywell® Filter Cabinet 20" x 25", 2,000CFM (MERV 11)

APPLICATIONS

The F100 Media Air Cleaner captures a significant amount of the airborne particles in the air circulated through the unit. Recommended as a basic minimum air quality product. Includes; cabinet, access door and MERV 11 filter.

FEATURES & BENEFITS

• High efficiency media filter captures particles as small as 0.3 microns.
• Applicable to all gas, oil and electric forced air furnaces and to compressor cooling up to 5 tons.
• Mounts in the return air duct.
• Rugged zinc-coated, roll-formed cabinet resists corrosion and can support weight of residential furnace and evaporator coil.
• Requires no electrical connections.
• Mounts in any position.
• Requires no maintenance except periodic media filter replacement.
• Quick and easy media filter replacement.
• Later upgrade to higher performing media or electronic air cleaner is easy.
• Maximum Airflow Capacity (cfm): 2000 cfm
• Maximum Airflow Capacity (m³/hr): 3400 m³/hr
• Efficiency Standard: Efficiency ratings are based on ASHRAE Standard 52.2-1999.,Efficiency ranges are defined for small particles, E1=0.3 to 1.0 microns; medium particles, E2=1.0 to 3.0 microns; and large particles E3=3.0 to 10.0 microns
• Fractional Efficiency: E1=32%, E2=72%, E3=96%
• Replacement Media: MERV 11 - FC100A1037, MERV 13 - FC200E1037
• Minimum Efficiency Reporting Value (Media Filters Only): MERV 11
• Static Pressure Drop (in. w.c.): 0.23 at 500 FPM
• Approvals, Underwriters Laboratories Inc.: Filter Element: UL Listed, UL900, Class 2

INCLUDES

• Cabinet
• Access Door
• MERV 11 Filter
