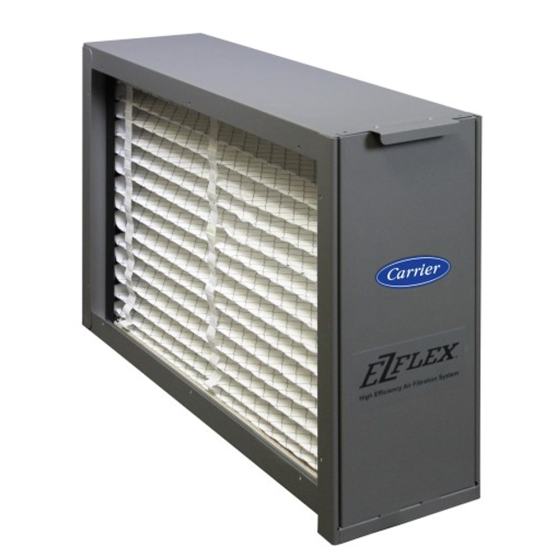

EZ Flex™ Filter Cabinet with 20" x 25" x 5" MERV 10 Filter
FLEXIBLE DESIGN — EZXCAB can be used in upflow,
downflow and horizontal applications.
STURDY FLEXIBLE CABINET DESIGN — The EZXCAB
features a sturdy 20 gauge powder coat painted cabinet that can
withstand the weight of a 400--lb. (181 kg) furnace. The EZXCAB
can be easily upgraded to the EAC — Electronic Air Cleaner.
EFFICIENT DESIGN — The EZ Flex filter is rated at MERV 10
with a MERV 13 replacement available. MERV (ASHRAE
Standard 52.2, Minimum Efficiency Reporting Value) for
residential filters will typically be in range of MERV 1--13. The
higher value the more efficient the filter.
FILTER CHANGE REMINDER — The EZXCAB is equipped
with a month indicator to remind the homeowner when to change
SYSTEM FRIENDLY PRESSURE DROP — The EZ Flex filter
protects HVAC system by not producing significant pressure drop,
therefore allowing the system to operate at its optimum efficiency.
LARGE DUST HOLDING CAPACITY — The EZ Flex has a
high dust holding capacity. This increases the time between filter
changes.The exceptionally large surface area traps dust, pollen, molds,
tobacco, smoke, grease, soot, bacteria, and animal dander to
provide cleaner, fresher air that is free of airborne pollutants and
irritants regardless of the season.
|California Prop 65||Yes|
|Weights and Dimensions|
|Operating Weight (lbs)||19||Exterior Dimensions (D) (inches)||24.8750||Exterior Dimensions (W) (inches)||7.2500||Exterior Dimensions (H) (inches)||20.9375||Shipping Weight (lbs)||29.0000|
