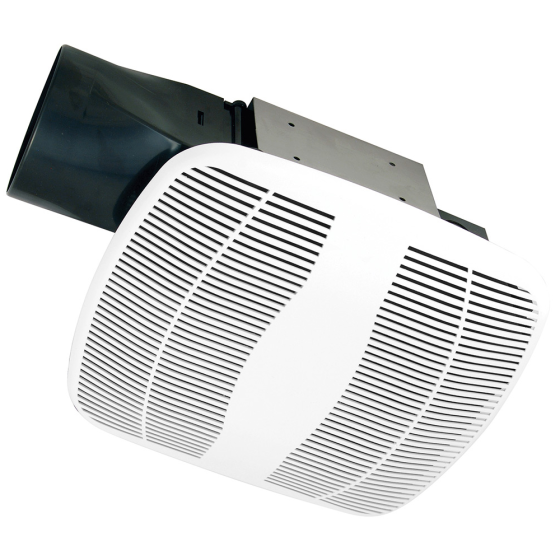

Air King® ENERGY STAR® Certified Snap-In Installation Ventilation Fan 4 in. Oval Duct, 70CFM, 1.5 Sones, 120Vac (Wall Mountable)

APPLICATIONS

The Air King® ENERGY STAR® Certified Snap-In Wall Installation Ventilation Fan solution provides a quiet operation quick installation and can be installed in standard 2 x 4 stud walls.

FEATURES & BENEFITS

• Can be used to comply with the ventilation standards required by LEED for Homes
• SNAP-IN wall installation Ventilation Fans easily install using the SNAP-IN Mounting System.
• UL listed for installation over a tub or shower on a GFCI circuit.
• HVI Certified performance.
• CFM @ .1 SP: 70
• Sones @ .1 SP: 1.5
• Sound Level: Quiet
• Watts: 22.3
• Effective Ventilation Area: 70 to 85 sq. ft.
• ASHRAE 62.2 Ventilation: Local
• ENERGY STAR® certified: YES
• Can be used to comply with California Title 24 requirements: YES
• CALGreen: Rooms other than bathrooms
• Duct Size: 4″ oval
• Collar / Damper: Plastic
• Mounting: SNAP-IN Bracket
• Housing: ABS Plastic
• Grille: White, polymeric grill secured in place with torsion springs; easily removed if necessary, dimensions – 10-3/4 " x 11-5/8 ".
• Blower Wheel: One-piece polymeric wheel 5-1/8" diameter, 2-3/8" wide, with 48 fins.
• Motor: Heavy duty, permanently split capacitor, plug-in, 4 pole motor, life time lubrication, thermally protected, suitable for continuous operation.
• Voltage Rating: 120 volts, 60 hz.
• Fan Housing: PC/ABS polymeric, dimensions 8-3/4 " x 9" x 3-7/8".
• Oval Duct Collar: Plastic collar for 4" duct connection, comes complete with built in non-metallic back draft damper for quiet operation. Oval design accepts standard 4" round ducting and fits into standard 2" x 4" walls.
• Ventilating Area: For bathrooms up to 70 sq. ft. For other rooms up to 85 sq. ft.
• Unit Mounting: Designed to mount in walls or ceilings with at least 4" of clearance. The unit is mounted directly to the joist or stud using a separate lock-in bracket (included with unit). The housing will mount through drywall thickness up to 3/4 ", with a rough-in opening of 8-7/8" x 9-1/8 ". Suitable for wall insert mounting when discharged vertically and mounted outside of shower enclosure.

INCLUDES

• Ventilation Fan Housing
• Blower (motor)
• Grille
• SNAP-IN Mounting Bracket
• Damper and Duct Collar
• User Manual
