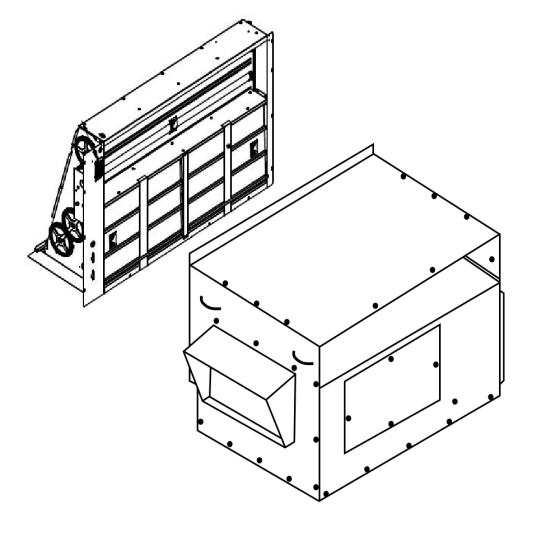

Vertical Economizer & Power Exhaust Combination Package, Genesis Ultra Low Leak with Honeywell JADE™ Controls, Adjustable Dry Bulb, Barometric Relief

FEATURES

• Includes ECD-SRT34CB series economizer
• External gear driven dampers with roll formed blades
• Designed for vertical applications only
• Factory assembled rain hood, with aluminum water entrainment filters
• Filter access door supplied with RTU
• Hinged filter access door ordered separately
• Rain hood is sloped for water run off
• All harnesses and plugs needed are supplied
• Economizer is class 1A & AMCA certified
• Relief blades are AMCA certified
• Uses filter rack with unit
• Field supplied and installed disconnect is required
• Blower is forward curved, double inlet, with pre-lubricated ball bearings, has a dynamically balanced wheel, and is mounted on rubber isolators
• Thermally protected motors
• Adjustable motor pulleys
