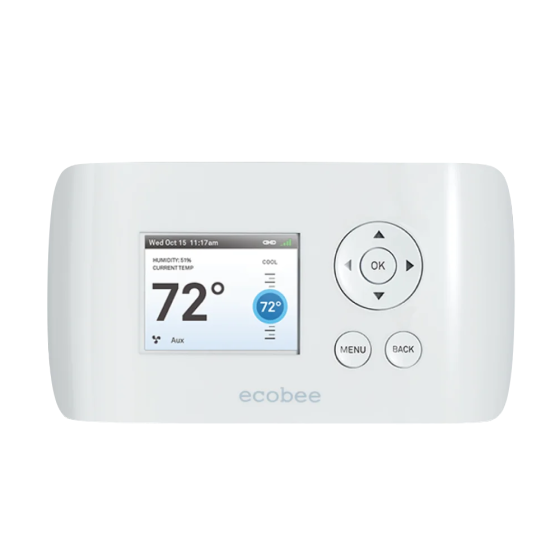

ecobee EMS Si Thermostat with Wi-Fi, 2H/2C (3H/2C HP), 24Vac

Item
EB-EMSSI-STAT
  • California Prop 65

APPLICATIONS

Compatible with wired sensors for walk-in fridge and freezer temperature monitoring.

Customizable automated responses to temperature alerts.

Ideal for restaurants and retail buildings.

FEATURES & BENEFITS

• Conventional (2H/2C)
• Heat pump (3H/2C) incl. 1-stage auxiliary heat
• Gas, oil, electric
• Dual fuel
• Terminals: R2-, R2+, R1-, R1+, W2 AUX, Y2, C, Rh, Rc, G, W O/B, Y
• 24VAC (3VA minimum)

• ecobee uses the latest encryption technologies to ensure that data is protected both in transmission and network access. The ecobee EMS Si is designed to support:
802.11 b/g/n wireless routers
WEP 64, WEP 128, WPA and WPA2 encryption methods
DHCP (dynamic) or Static IP addressing
168 bit SSL encryption

• Recyclable packaging
• Mercury free
• Arsenic free
• PVC free
• ROHS compliant
• Set point: 45° to 92°F (7°to 33°C)
• Display: 40° to 100°F (5° to 37°C)
• Sensitivity: +/- 1°F (+/- 0.5°C)
• Operating: 32° to 130°F (0° to 55°C)

• Two dry contact inputs and/or 10K resistive temp sensors that can be programmed to:
Adjust the heat and or cool set temperatures
Switch the system to occupied or unoccupied mode
Shut down the compressor
Shut down AC
Turn fan on
Disable auxiliary heat
Disable all heat

• Decorative trim plate included
• 94V0 (flame resistant) plastic
• Fahrenheit or Celsius display
• 365 day scheduling
• Automatic daylight saving time adjustment
• Adjustable Auto change-over dead-band

• Installer programmable options including:
Heat and cool differential temperature
Minimum compressor off time
Heat and cool fan dissipation time
Display temperature offset
Outdoor temperature detection (requires internet connection)
Reminders & alerts on screen or via email

• 3-year warranty
• 2.5” full-color LCD non-touch screen
• 320 x 240 pixel display

Specification
Touchscreen No
WiFi Capability Yes
Remote Sensing Capability Yes
Power Method Hardwire/24Vac
Humidification Controls No
Filter Indicator Yes
Battery Backup No
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 4
Exterior Dimensions (D) (inches) 7.000000
Exterior Dimensions (W) (inches) 7.000000
Exterior Dimensions (H) (inches) 4.000000
Shipping Weight (lbs) 4.000000
