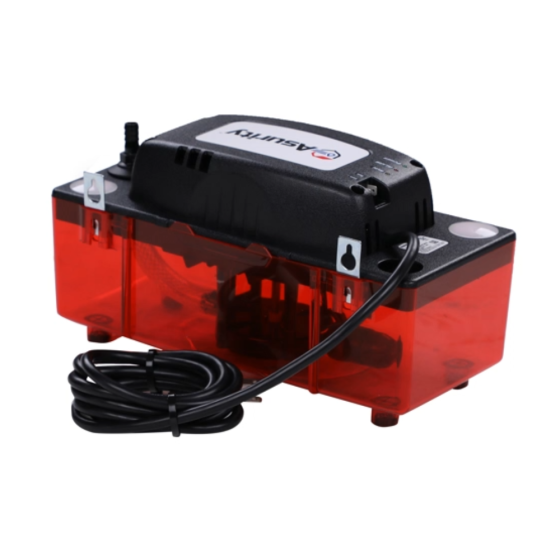

DiversiTech® Ultra Series Condensate Pump 132GPH, 115Vac

Item

ULTRACP-22

FEATURES

The Asurity® ULTRACP-22 Condensate Pump is a 120 volt pump with 22 ft of lift. It comes with innovative features such as a translucent tank for easy & fast inspection, vibration dampening feet & motor mounts, metal mounting tabs, four inlet holes (and 3 poly covers for the unused), LED indicators, float switch and duckbill-style check valve, and detailed installation instructions. Two 1/4in. quick connect terminals provide the installer fast and easy connections to the built-in overflow switch to shut-down the system and prevent flooding, an important safety feature.

• Translucent Tank for Easy & Fast Inspection

• 22 ft maximum lift height

• LED Indicators Confirm Pump Status

• Built-in Safety Overflow Switch

• Removable Check Valve for Easy Cleaning

• Handles Condensate up to 160 Degrees F.

• Removable Check Valve for Easy Cleaning

• Suitable for condensate up to 160° F

• Vibration dampening feet and motor mounts minimize sound

SPECIFICATIONS

• Color: Red Translucent

• Volts: 115

• Hertz: 60

• Horsepower: 1/30

• UL Listed: Yes

• Amps: 1.9

• Discharge Line (In.): 3/8

• Floatless Sensor: No

• GPH (Gal./Hr.) @ 10 Ft. Lift: 108

• High Level Switch: Yes

• Input Type: NEMA 5-15 Plug

• Max Condensate Temp. (Degrees) : 160°F

• Max Flow Rate (GPH): 132

• Max Lift Height (Ft.): 22

• No. of Inlets: 4

• Self-Cleaning: No

• Tank Capacity (Gal.): 1/2

• Variable Speed and Lift: No

Specifications

Electrical
Voltage	115

Safety Standards
California Prop 65	Yes

Specification
Gallons Per Hour	132GPH

Weights and Dimensions
Operating Weight (lbs)	6
Exterior Dimensions (D) (inches)	13.000000
Exterior Dimensions (W) (inches)	7.000000
Exterior Dimensions (H) (inches)	8.000000
Shipping Weight (lbs)	6.000000

Resources

ULTRACP-22_Installation.pdf

ULTRACP-22_Specifications.pdf
