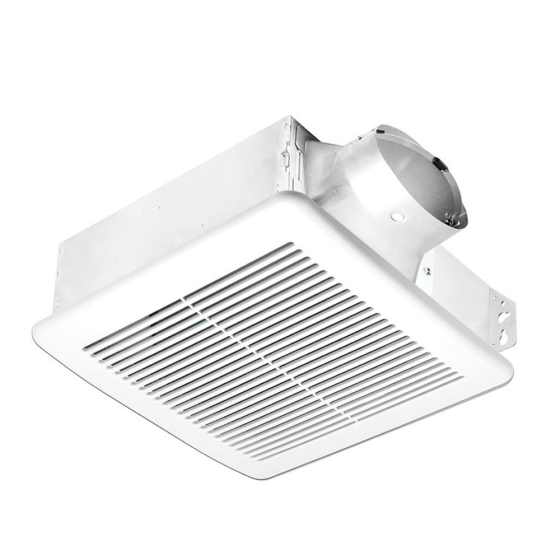

DeltaBreezSlim ENERGY STAR® Certified Ventilation Fan 4 in. Oval Duct, 110CFM, 0.3 Sones, 120Vac

FEATURES

Super Low Profile. Super Low Energy Consumption.

Delta BreezSlim SLM50-110-C is suitable for ceiling or wall mount installation. It is ENERGY STAR qualified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and loudness rating of 1.2 Sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 16.5 Watts with efficiency rating of 6.6 CFM/Watt at 0.1” static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.

• ENERGY STAR® qualified with innovative brushless DC motor technology
• UL approved for ceiling and wall mount installation. It can fit in a 4" wall
• 4" Oval Duct
• SLM50-110-C can fit with Ceiling Radiation Damper SMT-CRD2
• Full speed adjustable, 50CFM, 80CFM or 110CFM
• Perfectly quiet operation at < 0.3 sones (50CFM), 0.4 sones (80CFM), 1.2 sones (110CFM)
• Energy efficiency at 8.3 CFM/Watt(50CFM), 9.4 CFM/Watt(80CFM), 6.6 CFM/Watt(110CFM)
• Turn the power switch on/off to operate on/off, LED indicator will be green when power is on
• Annual energy cost for 24/7 operation is approximately $6.31* (50CFM), $8.94* (80CFM), $17.35* (110CFM)

DC Motor/Blower
• Power Rating of 120 volts/60Hz
• Motor equipped with thermal cutoff fuse
• Removable with permanently lubricated plug-in motor
• Full speed adjustable, 50, 80 or 110 CFM
• Built-in soft start function to increase bearings’ life
• Automatically powers OFF when impeller is locked abnormally

Housing
• Galvanized steel body
• Detachable 4” oval metal duct adapter
• Built-in backdraft damper
• Hanger bar included
• Easy installation with mounting flange

Grille
• Attractive design using ABS material
• Attaches directly to housing with torsion springs

LED Indicator
• Turn the power switch on/off to operate on/off,
• LED indicator will be green when power is on

Warranty
• 3-Year limited warranty
