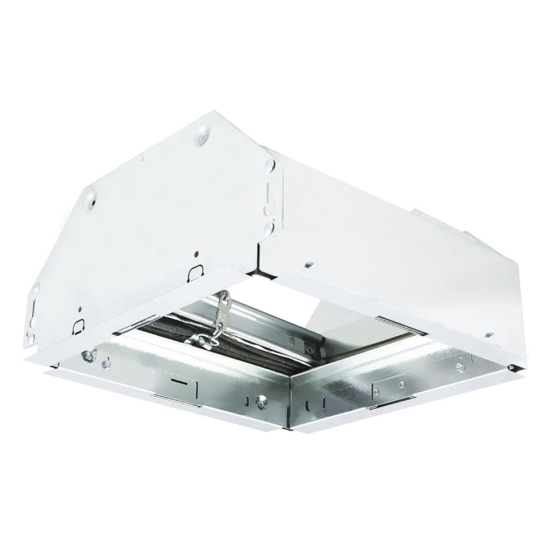

Delta BreezSmart Ceiling Radiation Damper
APPLICATIONS
Delta BreezSmart SMT-CRD - Ceiling Radiation Damper helps to limit the radiant heat transfer through an air inlet/outlet opening in the ceiling membrane.
The damper employs a folded curtain style blade for point-of-origin control of radiant heat in a ventilation system. SMT-CRD installs in the ceiling membrane for floor/ceiling or roof/ceiling assemblies with a re resistance rating up to and including 3 hours.
FEATURES & BENEFITS
• Galvanized steel frame and sleeve
• Folded ceramic curtain blade
• 165°F fusible link
• Size: 11 7/8” x 11”
• High temperature, non-asbestos, reinforced fiber thermal fabric
• Ceiling Radiation Damper is UL and cUL listed, and exceeds UL 555C for use in 3-hour fire rated assemblies.
• Warnock-Hersey certified for use in fire resistance rated floor/ceiling or roof/ceiling assemblies. Warnock Hersey listing #: 102195501SAT-002
• CSFM listing: 3226-0368:104
• UL 555C listing: R27832
• Meets NFPA Standards: 90A and 101
• Meets Building Code Standards: IBC, NBC, NFPA, SBC, and UBC
• Installation is valid for the following UL rated wood truss ceilings: L521, L546, L558, L562, L574, L576, L581, L583, L585, P522, P533, P538 and P545.
• Intended for installation with the following UL Listed Delta Electronic Fan Models SMT130, SMT130M, SMT130H, SMT150, SMT150D, and SMT150LED (For combustible and non-combustible installation), SLM80, SLM100, SLM80-110-C, SLM80-110LED-C, SLM80-110D-C, and SLM80-110DLED-C (For non-combustible installation only).
• 3-Year limited warranty
Specification | |
---|---|
Fitting Type | Dampers & Disks | Fitting Sub Type | Radiation Dampers |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 25 | Exterior Dimensions (D) (inches) | 11.125000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 3.875000 | Shipping Weight (lbs) | 25.000000 |
