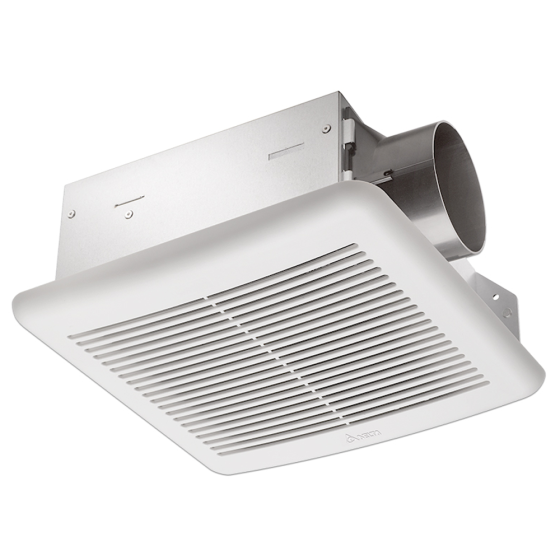

The powerful yet compact Delta BreezSlim ENERGY STAR® Certified SLM70H Humidity Sensing Ventilation Fan sets the bar for performance in the popular small fan size of 7-1/4" x 7-1/2" x 4". Operating at 2.0 sones, this quiet fan features Delta’s super reliable DC brushless motor, an LED indicator light so you know it’s running. Perfect for retrofit into an existing space for ceiling mount or wall mount installation (UL listed for both) into your next multifamily or single-family project. BreezSlim breaks the mold of the everyday bathroom Ventilation Fan.
FEATURES & BENEFITS
• ENERGY STAR® Certified with innovative brushless DC motor technology • In humidity sensing mode, the fan will start when humidity is above 60%, and will stop when humidity is below 60% automatically • UL approved for ceiling or wall mount installation • The only 7.5" x 7.25" small size bath fan in the market • Compact housing for easy retrofit and replacement of older bath fans • Quiet operation at 2.0 Sones • Energy efficiency rating approximately 5.8 CFM/Watt • Allows fan to operate in full speed mode or humidity control mode by cycling ON/OFF switch • Blue and Amber LED indicator light to show humidity sensor and full speed modes • Airflow (CFM @ 0.1 SP): 70 • Sones: 2.0 • Power Consumption (Watts): 13.2 • Energy Efficiency (CFM/Watts): 5.8 • Current (Amps): 0.29 Max • Power Rating (Vac/Hz): 120/60
DC Motor/Blower • Power rating of 120 volts/60Hz • Brushless DC motor engineered to run continuously • Motor equipped with thermal cutoff fuse • Removable with permanently lubricated plug-in motor • Allows fan to operate in full speed mode or humidity control mode by cycling ON/OFF switch • Built-in soft start function to increase bearings’ life • Automatically powers OFF when impeller is locked abnormally • Self-compensating motor speed for intended airflow when static pressure is encountered
