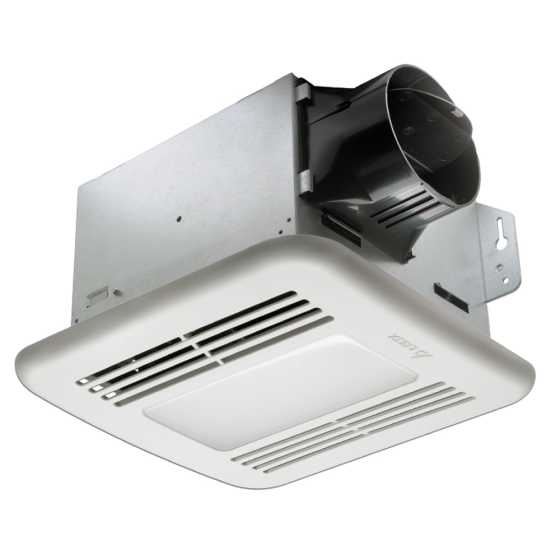

Delta BreezGreenBuilder ENERGY STAR® Certified Humidity Sensing Ventilation Fan with Light 4 in. Round Duct, 50 to 80CFM, 0.8 Sones, 120Vac (Multi-Speed)
Item
GBR80HLED
Please Login or Register to view pricing and inventory.
The Delta BreezGreenBuilder GBR80HLED ENERGY STAR® Certified Humidity Sensing Ventilation Fan marks a new achievement in bathroom ventilation for green construction. Built upon market-leading energy efficiency, exceptionally low power consumption and quiet operation, the Delta BreezGreenBuilder GBR80HLED ENERGY STAR® Certified Humidity Sensing Ventilation Fan is equipped with a Dimmable LED Light option as well.
FEATURES & BENEFITS
• ENERGY STAR® Certified with Brushless DC Motor technology • Quite operation at 0.8 Sones • Ceiling mount ventilating Fan/Dimmable LED Light with humidity sensor rated for continuous running • 13-Watt Dimmable LED light included (equivalent to a 60-Watt incandescent bulb). Dimmer switch not included. • LED life is 30,000 hours (compare with 10,000-hour CFL life) • Main light output: 850 Lumens; 3000K; 90 CRI for high color accuracy and compliance with CEC JA8 Title 24 requirements • For humidity control mode, when humidity is above the user-adjustable set-point, fan runs at full speed (80 CFM). When humidity is below the set-point, the fan runs continuously at a pre-set lower level (0 or 50 CFM) • Energy efficiency at 7.2 CFM/Watt • Blue and amber LED indicator lights to show humidity sensor and full speed modes • Hanger bars included • Duct Size: 4" Round • Airflow (CFM @ 0.1 SP): 50CFM, 80CFM • Sones: 0.5 @ 50CFM, 0.8 @ 80CFM • Power Consumption (Watts): 4.4 @ 50CFM, 11 @ 80CFM • Energy Efficiency (CFM/Watts):11.3 @ 50CFM, 7.2 @ 80CFM • Current (Amps): 0.33 Max • Power Rating (Vac/Hz): 120/60 • LED Main Light (Watt): 13
DC Motor/Blower • Power rating of 120 volts/60Hz • DC Brushless motor engineered to run continuously • Motor equipped with thermal cutoff fuse • Removable with permanently lubricated plug-in motor • Allows fan to operate in full speed mode or humidity control mode by manual switch • For humidity control mode, when humidity is above the user-adjustable set-point, fan runs at full speed (80 CFM). When humidity is below the set-point, the fan runs continuously at a pre-set lower level (0 or 50 CFM) • Built-in soft start function to increase bearings’ life • Automatically powers OFF when impeller is locked abnormally • Self-compensating motor speed for intended airflow when static pressure is encountered
