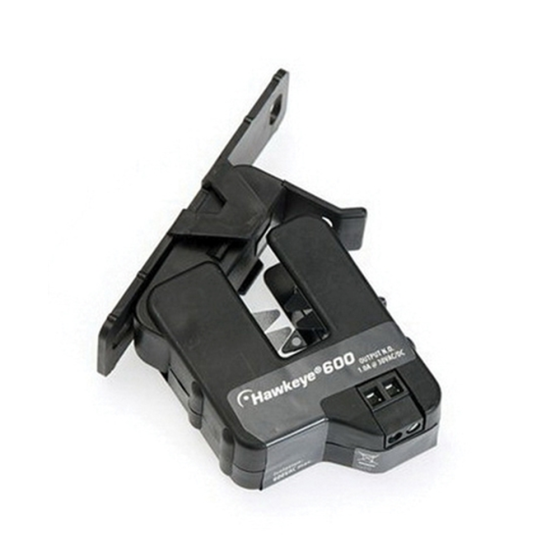

Current Switch Adj 0.5-175A

FEATURES & BENEFITS

• Mounting: Split Core
• Current Measurement Range: 0.5 - 175 A
• Measurement Type: AC Current
• Output Specifications: N.O. 1 A @ 30 VAC/DC
• Outputs: Switch output
• Relay Coil Voltage: None
• Relay Contact Ratings: None
• Relay Poles/Throw: None
• Setpoint: Adjustable
• Application: Building Automation Systems
• Current Sensor type: Current Switch, AC
• Electrical Wiring Size: 24 - 14 AWG (0.2 - 2.1 mm²)
• Model: H608
• Monitored Frequency Range: 50 - 60 Hz
• Monitored Wire Size: 0.5" (12 mm)
• Operating Humidity: 10 - 90% RH, non-condensing
• Operating Temperature: 5 - 140 °F (-15 - 60 °C)
• Product Type: Sensor
• Range: HX08 Series
• Product Certification: UL | CE
• Warranty: 5 years
