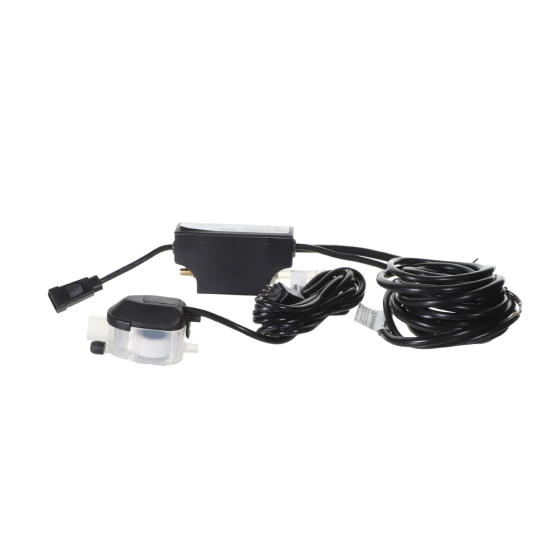

The Asurity™ CP-M230 Mini-Split Condensate Pump is a quiet, compact, and feature rich pump. The 230 volt pump's low profile fits easily into most line set covers and cassettes. Asurity™ - Your Complete System for Condensate Management.
FEATURES & BENEFITS
• Voltage: 230Vac, 50/60Hz • Watts: 19W • Duty Cycle Rating: 70% • Sound: <21 dB(A) at 3.3’ • Overflow Switch: 5A @ 250VAC Resistive • Working Temperature: 41ºF to 113ºF (5ºC to 45ºC) • Storage Temperature: 37ºF to 158ºF (3ºC to 70ºC) • ETL: 4000786 (Conforms to UL STD 778) • CSA: C22.2 NO. 108 • Compact Size • Flexible installation options. Fits inside line set covers or inside cassette • Clear Reservoir • Dual Outlet Reservoir • Reservoir Mounting Plate • Up to 6’ Suction Lift - 24’ Total Lift • For systems up to 2.8 tons (34,000 BTUs – 10kW) • Quiet. < 21dB(A) • Thermally Protected • Built-In Overflow Switch – SPDT Alarm Circuit • 2 Year Warranty • ETL Listed • Water Resistant Sensor Cable
