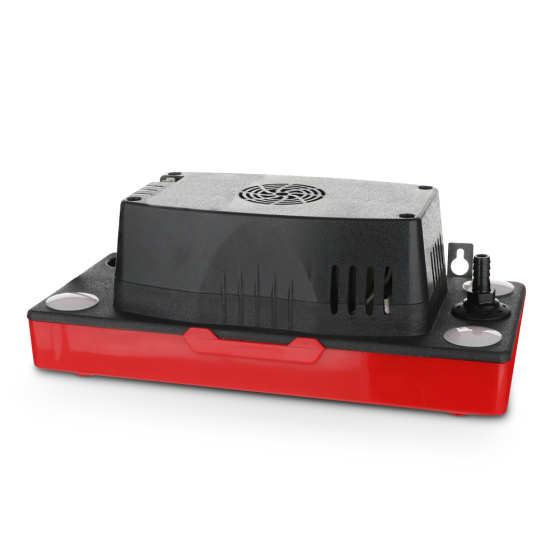

DiversiTech® Condensate Pump 1.6GPM, 120Vac (Low Profile)

Item
CP-22LP
  • UL Listed
  • California Prop 65

APPLICATIONS

This product is designed to automatically evacuate condensate or water discharge from HVACR equipment up to 22” vertically once the condensate in the reservoir reaches a specified level.

FEATURES & BENEFITS

• Asurity™ CP-22LP series pumps beat the industry standard of 20’ lift height by 2 feet and come with innovative features such as: a low profile, vibration dampening feet and motor mounts, metal mounting tabs, four inlet holes (and 3 poly covers for the unused), LED indicators, float switch and duckbill-style check valve, and detailed installation instructions. Two terminals are provided allowing the installer flexibility to connect air-handler shut-down, and important safety consideration.
• Maximum Condensate Temperatures:
Continuous Duty 140° F
Maximum inlet temperature 160° F
Not suitable for contact with steam or gases that exceed 160° F
• Rated Voltage: 120Vac
• Rated Current Draw: 1.9A
• Input Type: USA 3-prong molded plug
• Maximum Lift Height: 22 ft
• Flow Rate at Zero Head: 1.6 gallons per minute
• Dimensions: 11.8 in x 4.9 in x 6.7 in
• Weight: 4.7 lbs
• Inlet Height from Base: 1.75 in
• Tank capacity: 3/8 gallon
• Wiring Color References:
Black – Live/Hot
White - Neutral
Green – Ground
(All installations must conform to local building codes)

INCLUDES

• Instruction Booklet
• Metal Hang Tabs
• 4 ft Remote Shutoff Leads with insulated terminals
• Polyethylene inlet covers (3)

Electrical
Voltage 120
Safety Standards
California Prop 65 Yes
UL Listed Yes
Specification
Gallons Per Minute 1.6
Weights and Dimensions
Operating Weight (lbs) 5
Exterior Dimensions (D) (inches) 12.000000
Exterior Dimensions (W) (inches) 7.000000
Exterior Dimensions (H) (inches) 5.000000
Shipping Weight (lbs) 5.000000
