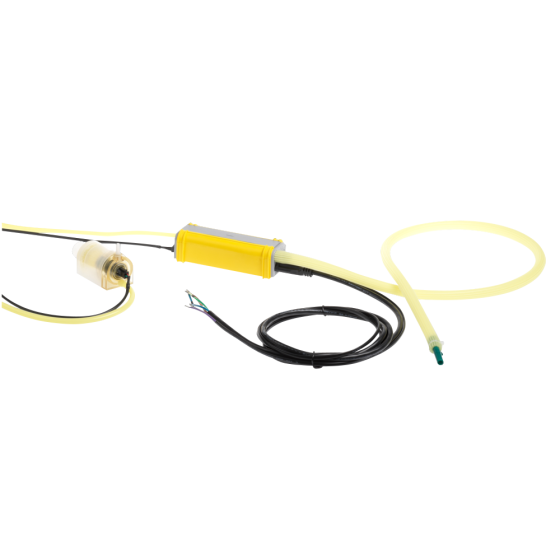

The COMBI Condensate Pump is designed for systems from 6,000 BTU/h (1.75kW) up to 120,000 BTU/h (35kW). The digital water sensor, the universal voltage range and the individually configurable flow rate are features that help make the COMBI the most powerful and quietest air conditioning condensate pump on the market today. The variable range of applications allows the trade as well as the installer to cover almost all needs with only one pump.
FEATURES & BENEFITS
• Universal use due to wide range of applications • Warranty period starts only after commissioning (readable via USB) • 11 gallon pumping capacity per hour • 65 ft delivery head • 19 dB noise level • No float problems thanks to digital sensor • Water sensor can be used horizontally or vertically • Control of the pumping capacity according to requirements • Spare parts available • Voltage: 100 - 240 VAC • Frequency: 50 / 60 Hz • Protection Class I • Ingression Protection: IP44 • Energy Consumption: 8 W • Cable Length: 5 ft • Max. Flow Capacity: 11 GPH • Max. Suction Head: 10 ft • Max. Delivery Head: 65.6 ft • Noise Level: 19 dB(A) • Alarm Relay: Interchangeable NO or NC, rated 250VAC, 6.3A or 28VDC, 6.3A • Tube Diameter: 1/4 ′′ • Color: Yellow • Standards: EN 60335-1, EN 60335-2-41, UL778, CSA C22.2 #68 • RoHS Conformity: 1 • RoHS Conformity: Yes • Type: Diaphragm type • Operating Temperature Range: 37.5 - 104 °F • Storage Temperature Range: -4 - 122 °F • Water Temperature Range: 41 - 77 °F
INCLUDES
• Power cable • Alarm cable • Sensor cable • Star tube and anti-siphon device • Suction tube • Vent tube • Factory-installed alarm fuse • Cable ties • Instruction manual
