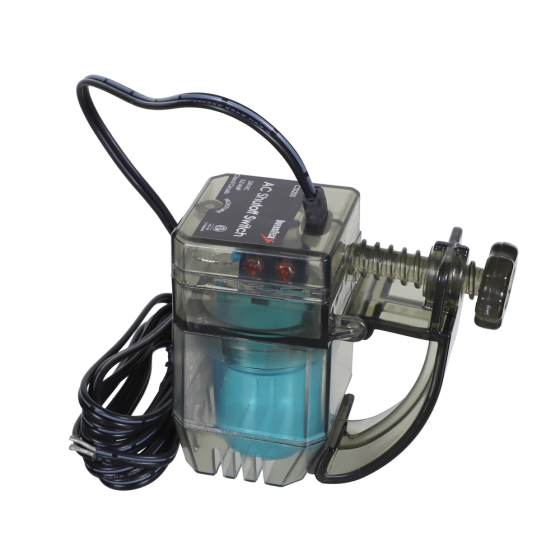

The CS1200 Condensate Safety Overflow Switch is designed to automatically shut down air conditioners, heating systems and other condensate producing appliances that are located in a condensate drain pan. The CS1200 Condensate Safety Overflow Switch is activated when water accumulates in the drain pan and is in danger of overflowing. When water rises the CS1200 Condensate Safety Overflow Switch float activates a snap-action switch which shuts down the HVAC system to protect equipment and the surrounding area.
FEATURES & BENEFITS
• ETL Recognized Class II Float Switch 3190890 • Current Rating: 5 Amps Resistive / 3 Amps Inductive • Water Activation Level: Less than 1⅛” from bottom of housing • Clamping capacity (thickness range): 0.020 to 1 inch (Thin sheet-metal pan to thick molded plastic pans) • Snap-action switch UL Recognized (File No. E41515) CSA Certi‑ed (File No. LR21642) • LED Red AlGaAs with 4.7K Resistor • Self-Test Built-in lever activates switch • Voltage: 24Vac
