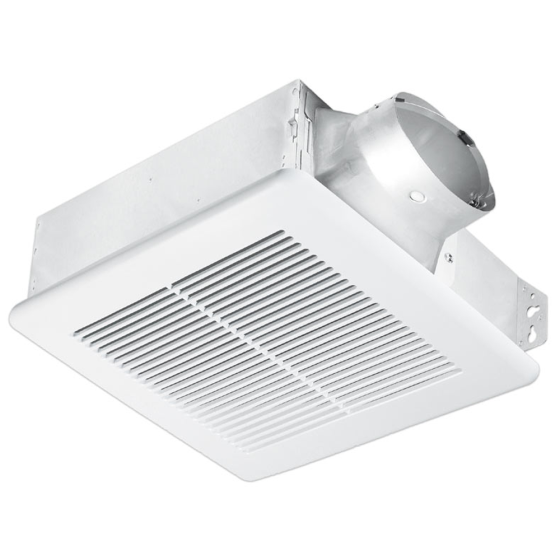

The Delta BreezSlim SLM100 ENERGY STAR® Certified Ventilation Fan is suitable for ceiling or sidewall installation. It is ENERGY STAR Certified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 100 CFM and loudness rating of 1.0 sone at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 14.5 Watts with efficiency rating of 6.8 CFM/Watt; fan will feature LED indicator running light and motor lock protection. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
FEATURES & BENEFITS
• ENERGY STAR® Certified with innovative brushless DC motor technology • UL approved for ceiling and wall mount installation, and it can fit in a 4" wall • 4" Oval Duct • Quiet operation at 1.0 Sone • Ultra-low power consumption at 14.5 Watts • LED indicator will be green when power is on • Airflow (CFM @ 0.1 SP): 100 • Sones: 1.0 • Power Consumption (Watts): 14.5 • Energy Efficiency (CFM/Watts): 6.8 • Current (Amps): 0.3 Max • Power Rating (Vac/Hz): 120/60
DC Motor/Blower • Power rating of 120 volts/60Hz • Motor equipped with thermal cutoff fuse • Removable with permanently lubricated plug-in motor • Built-in soft start function to increase bearings’ life • Automatically powers OFF when impeller is locked abnormally
Housing • Galvanized steel body • Detachable 4” oval metal duct adapter • Built-in backdraft damper • Hanger bars included • Easy installation
Grille • Attractive design using ABS material • Attaches directly to housing with torsion springs
LED Indicator • Turn the power switch on/off to operate on/off. LED indictor will be green when power is on.
