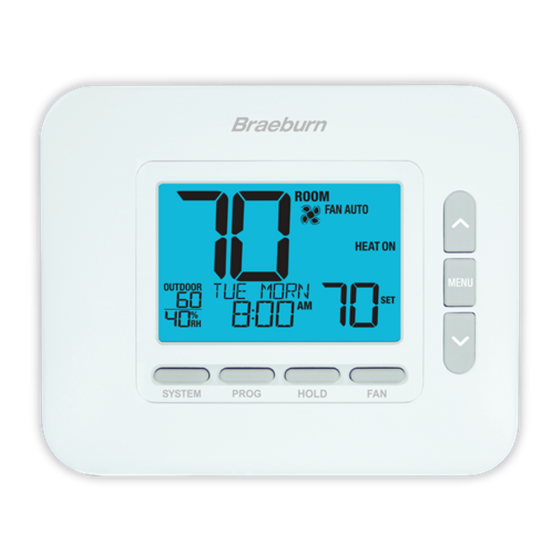

Braeburn® Premier Series 7/5+2 Day Programmable Thermostat 2H/2C (3H/2C HP), 24Vac/3Vdc (2 AA)

FEATURES

• 7 Day, 5-2 Day or Non-Programmable

• Large 4.4 Square Inch Display with Adjustable Backlight

• Auto or Manual Humidification Control

• Dehumidification Control with Overcooling

• Auto or Manual Changeover

• SmartLimit Temperature Limits

• Indoor or Outdoor Remote Sensing (Separate remote sensor required.)

• SpeedSet Programming Mode

• Hardwire or Battery Powered

• User and Installer Lock Modes

• Pre-Occupancy Purge Option

• Auxiliary Heat Fossil Fuel Option

• Programmable and Circulating Fan Modes

• Adaptive Recovery Mode (ARM )

• Temporary Override Limits

• Compatible with 2 or 3 Wire Hydronic Zone Systems

• Multi-Function Dry Contact Input for Occupancy Control, Condensate Monitoring or Door Switch Activation

• Dimensions: 4.25” x 5.12” x 1”

• Electric Rating

○ 24 Volt AC (18-30 Volt AC)

○ 1 amp maximum load per terminal

○ 7 amp total maximum load (all terminals)

• AC Power: 18-30 Volt AC

• DC Power: 3.0 Volts DC (2 “AA” Alkaline batteries included)

• Compatibility

○ Single stage gas, oil, electric or hydronic systems

○ Single stage heat pumps with or without auxiliary heat

○ 250mv – 750mv millivolt heating systems

• Control Range: 45° to 90° F (7° to 32° C)

• Display Range: 35° to 99° F (1.5° to 37° C)

• Accuracy: +/- 1° F (+/- .5° C)

• Temperature Differential: 0 .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C)

• Storage Temperature: 14° to 140° F (-10° to 60° C)

• Operating Humidity: 5% to 95% Relative Humidity

• Terminations: Rc, Rh, O/B/V3, Y1, Y2, W1/E, W2/AUX, G, C, L, S1, S2, H/D, DRY1, DRY2

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	2
Exterior Dimensions (D) (inches)	2.000000
Exterior Dimensions (W) (inches)	6.000000
Exterior Dimensions (H) (inches)	6.000000
Shipping Weight (lbs)	2.000000
