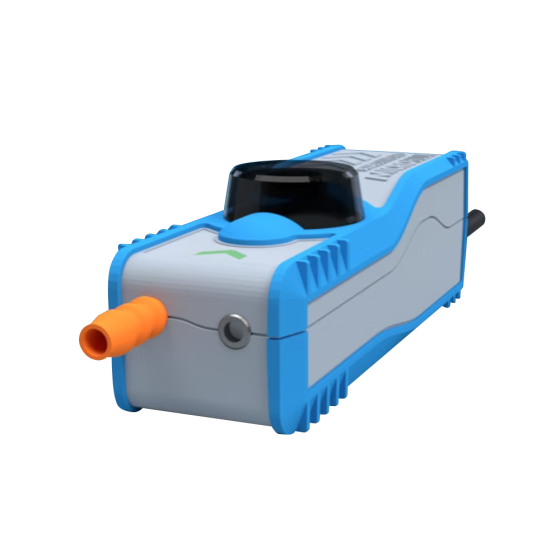

BLUEDIAMOND® MICROBLUE® Condensate Pump with Slim Fascia Kit 1.3GPH, 110-230Vac

Item

X86-011

SPECIFICATIONS

• Electrical rating: 115-230V, 0.08-0.05A, 50/60Hz

• Fuse rating: T0.5AH250V/ NOT INCLUDED

• Max flow rate: 1.3 G/H

• Max head: 16FT

• Max lift: 6FT

• Size: 5.8”x1.44”x1.56” (LxWxH)

• Inlet/Outlet size: 0.24”

• Alarm relay: MAX: 5A 240V AC/5A 30V DC

• Tubing: Use specific ¼ ID braided tube on pump inlet & outlet.

• MICROBLUE® with Reservoir

• Cover

• Base Plate

• Mounting Screws (4)

• Wall Plug (4)

• Cable Tie

• A/C Outlet Tube 100mm

• Connector Tube 140mm

Electrical
Voltage	110/208/230

Safety Standards
California Prop 65	Yes

Specification
Gallons Per Hour	1.3

Weights and Dimensions
Operating Weight (lbs)	5
Exterior Dimensions (D) (inches)	14.000000
Exterior Dimensions (W) (inches)	5.000000
Exterior Dimensions (H) (inches)	5.000000
Shipping Weight (lbs)	5.000000
