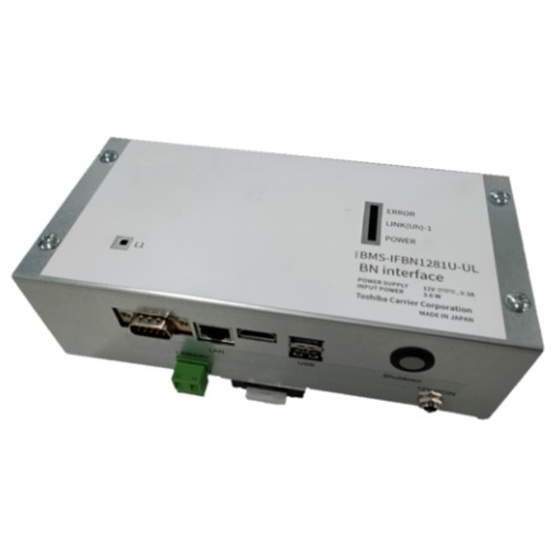

BACnet Interface 120Vac

FEATURES

The BN Interface refers to equipment used for controlling Building Management Systems (locally procured) and air conditioning systems “TU2C-LINK Uh Line compatible models” through communications over a network to enable central control:

• CONTROL
ON/OFF
Operation Mode
Set Temperature
Fan Speed
Louver
Permit/Prohibit Local Operation
Filter Sign Reset

• MONITOR
ON/OFF
Operation Mode
Fan Speed
Louver
Set Temperature
Room Temperature
Permit/Prohibit Local Operation
Error Code
Error Status
Filter Sign

SPECIFICATIONS

• Power Supply: 120V AC 60 Hz
• Power Consumption: 3W
• Operating Temperature Range: 32 °F to 104 °F (0°C to 40 °C), 10% to 80% RH (no condensation)
• Storage Temperature Range: 14 °F to 140 °F (-10°C to 60 °C), 10% to 90% RH (no condensation)

• Dimensions, in. (mm)
W 7.87 (200)
H 3.94 (100)
D 2.36 (60)

• Weight, lb. (g) BN Interface 1.60 (275)
• Power Adapter 1.00 (450)
